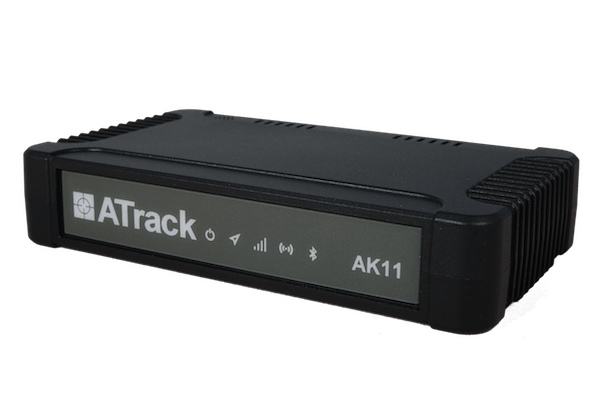

ATrack AK11

ATrack AK11 is a 4G LTE/3G fleet tracking device which is suitable for real-time management of both small and large fleets across various market verticals. Additional WiFi hotspot feature offers other in-vehicle devices LTE network access, and BT feature offers communication with mobile Android/iOS applications.

Show more

Package contents

ATrack AK11 package contains the following device/accessories:

  • Device
  • Power/IO Cable
  • User manual

Product features:

  • 4G LTE (CAT.1) with 3G fallback
  • OBDII, J1939, J1708, FMS interface
  • RS232, RS485, USB interface
  • OBDII interface
  • Vehicle Interface (VI) hardware for ELD
  • VIN, RPM, Odometer, Engine Hour
  • Automatically switch GPS Internal & external antenna
  • Built-in 3-axis G-sensor
  • Vehicle Speed Sensor (VSS) supported
  • Firmware over the air (FOTA) upgrade via the FTP protocol
  • Configurable Real Time Tracking & Logging
  • Harsh driving behavior events
  • Configurable power management
  • 1-Wire® iButton® for driver identification
  • 1-Wire® temperature sensor supported
  • Intelligent event control engine
  • WiFi Hotspot 2.4GHz 802.11b/g/n (optional)
  • Bluetooth 4.1 BLE (optional)

Location and tracking

ATrack AK11 is embedded with GPS. It does not support A-GPS, or GLONASS technology.

Mobile networks

ATrack AK11 has a Quad-band GSM 3G/4G module that allows to operate it all over the world.

Power supply

External power supply might be 8-40V, which makes possible to use ATrack AK11 with all car models.

Local and remote management

ATrack AK11 can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS. It also supports firmware update over the air (FOTA).

LED Indication

ATrack AK11 model has five LEDs:

  • Power LED – indicates power status
  • GPS LED – indicates GPS signal
  • WWAN LED – idnicates WWAN signal
  • WiFi LED – indicates WiFi signal
  • Bluetooth LED – indicates Bluetooth

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47712

General information

PurposeVehicle
InstallationProfessional

Housing

Weight100 g (3.53 oz.)
Size104.1x76.8x26.8 mm (4.1x3.02x1.06 in)

GNSS Location

Internal antenna (GNSS)Yes
External antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation4G, 3G

Interfaces

Number of RS232 interfaces1
Number of outputs5
Number of inputs (all types)8
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
RS232 interfaceYes
Supported
RS485 interfaceYes
Supported
1-Wire interfaceYes
Supported
OutputsYes
Supported

Hardware features

AccelerometerYes

Hardware extras

Driver ID readingYes
On request
External temperature sensor readingYes
Supported

Tracking features

Tracking modesContinuous
Smart power consumptionYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported
Car crashYes
Supported
TowingYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS)
Supported
Firmware update OTAYes
Forced GNSS location update over SMSYes
On request

Certification

EACYes
