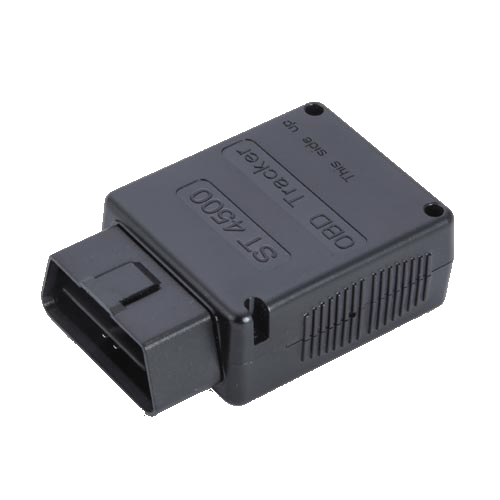

Suntech ST4500

The ST4500 vehicle tracker supports 4G LTE Cat-M1/NB-IoT with fall back to 2G. The ST4500 is a low-cost tracking solution which simply plugs into the OBD II diagnostic port placed in the vehicle, commonly near the driver’s knees or below the steering wheel column. Once you plug the ST4500 into the OBD II port of your vehicle, the device starts tracking and monitoring diagnostic information about the vehicle. Features including, hybrid & electric vehicle support, using Gyro and enhanced three-axis accelerometer.

Show more

Location and tracking

  • GPS, GLONASS
  • Continuous tracking mode

Mobile networks

  • 850/1800/1900MHz
  • 2G / 4G

Power supply

  • Build-in battery Rechargeable 3.7V, 350mAh Li-ion Battery
  • External power supply DC 8 V ~ 33 V

Other features

  • Detect OBDII-Protocol automatically
  • Odometer
  • Internal temperature sensor

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47728

General information

PurposeVehicle
InstallationDIY

Housing

Weight71 g (2.5 oz.)
Size74x46x25 mm (2.91x1.81x0.98 in)

GNSS Location

GPSYes
GLONASSYes

Connectivity

Cellular network typeGSM/WCDMA
Cellular network generation4G

Hardware features

Internal temperature sensorYes
Supported

Tracking features

Tracking modesContinuous
OdometerYes
Supported

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
Supported
External power source voltageYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Forced LBS location update over GPRSYes
Supported
