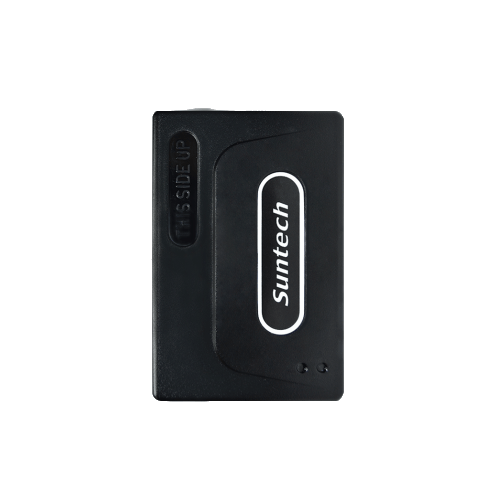

Suntech ST3300R

The ST3300R series was designed for light vehicle and truck applications. The equipment has interfaces that include multiple ports such as RS-232, ADC, 1-Wire and two-way audio to support a wide variety of external accessories. It has the following features: Reliable connectivity (3G and fallback to 2G), management pattern analysis, configurable report formats (UP), virtual ignition, geofences (polygonal and circular), RF signal inhibitor detection, bi-directional audio with microphone and horn.

Show more

Location and tracking

  • Internal GPS antenna (external antenna is optional)
  • Сontinuous tracking mode that helps to provide more accurate tracks
  • LBS mode if GPS connection is lost
  • 56 canales / GPS L1 GLONASS L1 AGPS (ST 4300) / SABAS: WAAS, ENGNOS, MASA.

Mobile networks

  • Frequency bands @ 2G (GSM): 850/900/1800/1900 MHz
  • Type of the SIM card: 3FF SIM (Micro-SIM) / SIM Holder : Push Push
  • Comunicaciones M2M: Suntech Unified Protocol

Power supply

  • DC 8 ~ 33 V, electronic over voltage protection and reverse power supply
  • Typical: 40 ~ 50 mA 12V / Sleep mode: Less than 4 mA 12V / Deep sleep: Less than 2 mA 12V

Inputs and outputs

  • 4 Discrete inputs
  • 2 Digital outputs
  • 1 RS 232 for fuel level sensors, RFID reader, Fatigue sensor, Camera and temperature sensor.
  • 1-Wire interface

Other features

  • Geofences: 255 circular, 30 polygonal and 500 points for route deviation
  • Accelerometer
  • Internal memory: up to 10,000 positions
  • Driver registration and identification
  • Harsh driving alerts (accelerating, braking, cornering, acceleration during cornering)
  • Car crash detection
  • Alerts from fatigue camera
  • Low battery alert
  • Alert about absence of a driver

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47728

General information

PurposeVehicle
InstallationProfessional

Housing

Weight115 g (4.06 oz.)
Size90.2x58x26.2 mm (3.55x2.28x1.03 in)

GNSS Location

Assisted GPSYes

Interfaces

Number of outputs2
Number of inputs (all types)4
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
RS232 interfaceYes
Supported
1-Wire interfaceYes
Supported

Hardware features

Battery capacity50 mAh
Built-in batteryYes
Supported
AccelerometerYes

Hardware extras

Driver ID readingYes
Supported
External temperature sensor readingYes
Supported

Tracking features

Tracking modesContinuous
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported
Car crashYes
Supported

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS)
Supported
Forced LBS location update over GPRSYes
Supported
Forced GNSS location update over SMSYes
On request
