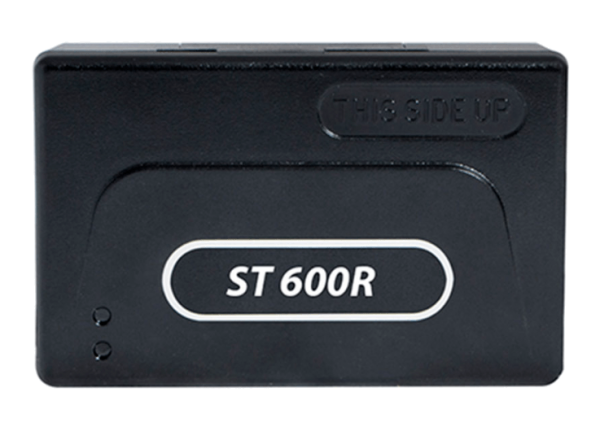

Suntech ST600R

ST600R is the ideal solution to transmit data at 3G speed. Equipped with an enhanced cellular modem, it offers support for HSDPA, UTMS, EDGE and GSM/GPRS. Using 2D network when 3G is not available, the device guarantee a greater availability of information. Multiple inputs and outputs allows for a wide array of peripherals. Ideal for light vehicles and trucks.

Show more

Location and tracking

  • GPS and GLONASS support
  • Continuous tracking mode
  • LBS support using one tower

Mobile networks

  • Standard quad-band
  • HSDPA, UMTS, EDGE
  • 2G and 3G network support

Power supply

  • Built-in 450 mAh Ni-MH battery

Inputs and outputs

  • 1 IGN input – for ignitions status detection
  • 3 digital inputs
  • 2 digital outputs
  • RS232

Other features

  • Driving quality
  • Local and remote management
  • Voice listening
  • Unauthorized movement detection

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47728

General information

PurposeVehicle
InstallationDIY

Housing

Weight100 g (3.53 oz.)
Size90x58x26 mm (3.54x2.28x1.02 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Cellular network typeUTMS 850/1900/2100, GSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation3G, 2G

Interfaces

Number of RS232 interfaces1
Number of outputs2
Number of inputs (all types)5
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
RS232 interfaceYes

Hardware features

Emergency buttonOptional
Supported

Hardware extras

Fuel level sensor readingYes
On request
Voice listeningYes
On request

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported
Car crashYes
Supported
TowingYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes
Forced LBS location update over GPRSYes
On request
Forced GNSS location update over SMSYes
On request
