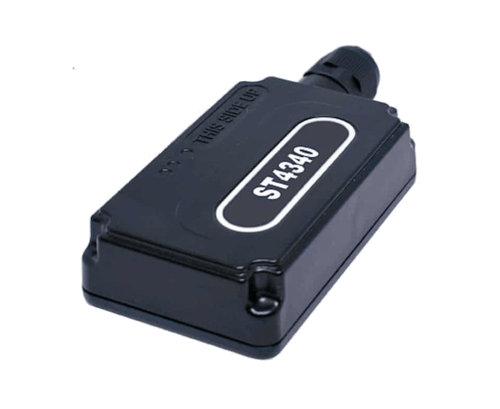

Suntech ST4340LC

Suntech ST4340LC is designed for a powerful and compact size tracker with water-resistant. This product is an ideal solution for vehicle tracking companies who are looking for a highly customizable device suitable for fleet management, vehicle insurance, and security/logistics management. It is capable of configuring the report format and customizing the report between the device and the application server for the customer.

Show more

Location and tracking

  • GPS, GLONASS
  • Continuous tracking mode

Mobile networks

  • LTE Cat M1/NB-IoT/2G

Power supply

  • Build-in battery rechargeable 3.7V, Li-ion 450mAh
  • External power supply DC 8 V ~ 33 V, Main power +/- inversion protection

Inputs and outputs

  • 2 digital inputs
  • 1 output

Other features

  • RFID reader
  • IP67 protection
  • LED indication

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47728

General information

PurposeVehicle
InstallationProfessional

Housing

Weight92 g (3.25 oz.)
Size74x45x19.5 mm (2.91x1.77x0.77 in)
Waterproof classIP67

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation4G, 2G

Interfaces

Number of outputs2
Number of inputs (all types)2
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
1-Wire interfaceYes
Supported

Hardware features

Battery capacity450 mAh
Built-in batteryYes
Supported

Hardware extras

Driver ID readingYes
Supported

Tracking features

Tracking modesContinuous
OdometerYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS)
Supported
Forced LBS location update over GPRSYes
Supported

Certification

FCCYes
