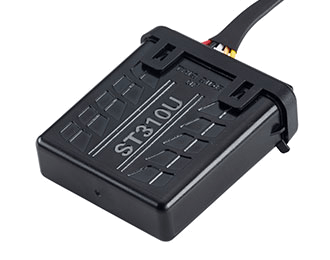

Suntech ST310U

The ST310U is a new low-cost, multi-functional vehicle tracking device.  It is newly equipped with Jamming Detection, another reliable and powerful tool that upgrades Suntech’s proven anti-theft features to a whole new level. Another new feature of this device is the ability to detect and identify ignition by voltage and motion, eliminating the need of any physical wire connection to the ignition.

Show more

The ST310U also supports configurable Circular Geo-fence and all kinds of reports such as distance and time traveled, vehicle angle and other travel events. Google Map location links may also be sent via SMS. It is an IP67 waterproof device that boasts extremely low power consumption.  It also comes equipped with a backup rechargeable 3.7V Li-Polymer battery allowing the device to send critical reports even when it’s disconnected from the main power source.

Suntech ST310U  is a vehicle tracking and controlling device with multiple functions. It covers a wide range of applications and requirements of professional users by providing configurable inputs/outputs and reliable GPRS communication ability.

Product features:

  • Jamming Detection / Anti-theft
  • Various Report : Distance, Time, Vehicle Angle and Travel Events etc.
  • Low Power Consumption
  • Identify Virtual Ignition (Voltage / Motion)
  • Location link on Google Map via SMS
  • Waterproof IP67

Location and tracking

  • GPS
  • GLONASS
  • A-GPS
  • LBS

Mobile networks

  • GSM 850/900 Mhz
  • DCS 1800/PCS 1900 Mhz
  • 2G Network

Power supply

  • Build-in battery (220 mAh Li-Po)
  • Protection against ESD and overvoltage
  • DC 8 ~ 33 V

Local and remote management

  • Remote GPRS commands
  • Server connection setup over SMS

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47728
Integrated on04/06/2018

General information

PurposeVehicle
InstallationProfessional

Housing

Weight70 g (2.47 oz.)
Size53x61x20.7 mm (2.09x2.4x0.81 in)
Waterproof classIP67

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes
Assisted GPSYes

Connectivity

Cellular network typeGSM 850/900Mhz, DCS1800/PCS1900Mhz
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs1
Number of inputs (all types)2
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
OutputsYes
Supported

Hardware features

Battery capacity220 mAh
Built-in batteryYes
Supported

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported
Smart power consumptionYes
Supported
OdometerYes
Supported

Events monitoring

External power cut offYes
Supported
Mobile signal jammingYes
Supported

Self monitoring

GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Firmware update OTAYes

Certification

CEYes
FCCYes
