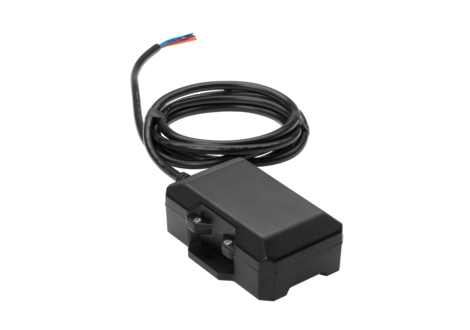

CalAmp TTU-2830

CalAmp TTU-2830 is a weatherproof vehicle tracker designed for long deployments. Built-in battery allows this tracker to save data during disconnect from the main power supply.

Show more

Location and tracking

  • GPS
  • Continous tracking mode
  • LBS

Mobile networks

  • GSM 850/900/1800/1900
  • HSPA/UMTS 800/850/900/1700/1900/2100
  • 2G

Inputs and outputs

  • 3 digital inputs (1 fixed, 2 programmable)
  • 1 analog input
  • 3 digital outputs
  • 1-Wire interface

Power supply

  • Built-in 5.3 mAh battery

Other features

  • IP-66 protection
  • Operating temperature -20° to +70° C

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47710
Auto registrationYes

General information

PurposeVehicle
Weight340 g (11.99 oz.)
Size110x54x40 mm (4.33x2.13x1.57 in)
Waterproof classIP66
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Roaming statusYes
Network signal levelYes
Cellular network typeGSM 850/900/1800/1900
Cellular network generation2G
Network operator IDYes

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes
GPSYes
Assisted GPSYes

Features

Remote outputs controlYes
OdometerYes
Hardware keyYes
Built-in batteryYes

Interfaces

Discrete inputs3
Number of outputs3
Analog sensorYes
1-Wire interfaceYes
