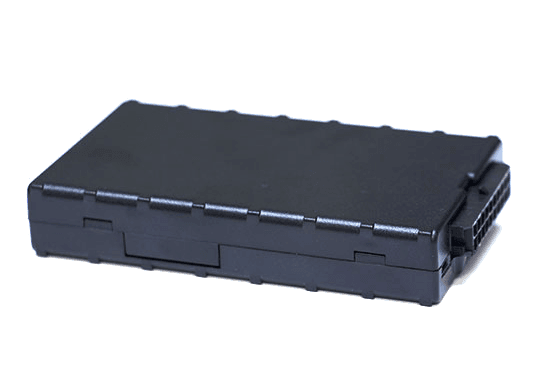

CalAmp LMU-1200

The LMU-1200 is a full-featured vehicle tracking product designed for easy and reliable installation in automobiles. The LMU-1200 is an ideal solution for basic fleet, automotive insurance, stolen vehicle, vehicle finance, auto rental and other vehicle track and trace applications where an internal back-up battery is required.icles.

Show more

Location and tracking

  • GPS, GLONASS Support
  • Continuous tracking mode
  • LBS Support

Mobile networks

  • 800/850/900/1700/1900/2100 MHz
  • 2G / 3G Network

Power supply

  • Build-in battery (200/1000 mAh)
  • External power supply (9-32 VDC)

Inputs and outputs

  • 4 Discrete input
  • 1 Analog input
  • 4 Digital outputs

Other features

  • Remote management
  • LED indication
  • Accessories

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47710

General information

PurposeVehicle
InstallationProfessional

Housing

Weight82 g (2.89 oz.)
Size54x89x24 mm (2.13x3.5x0.94 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes
Assisted GPSYes

Connectivity

Cellular network typeHPSA/UMTS 850/900/1900/2100
Internal antenna (Connection)Yes
Cellular network generation3G, 2G

Interfaces

Number of outputs4
Number of inputs (all types)5
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
OutputsYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS)
Supported
Forced GNSS location update over SMSYes
Supported
