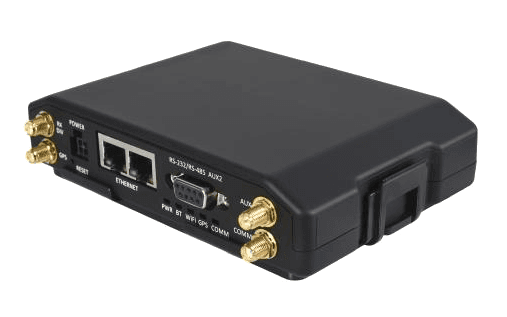

CalAmp LMU-5530

CalAmp LMU-5530 boasts an adaptable platform featuring: 3G/4G broadband routing, cellular gateway functions, a Programmable Event Generation engine, built-in 3-axis g-force measurements, multiple power management sleep modes, leading GPS sensitivity tracking technologies, and multiple interfaces all brought together under a flexible Linux operating system.

Show more

CalAmp LMU-5530 has the versatility, speed and expandability to meet customers’ ever challenging needs in fixed or mobile broadband applications. With a powerful, lower power, 800MHz ARM9 embedded processor, the LMU-5530 boasts an adaptable platform featuring: 3G/4G broadband routing, cellular gateway functions, a Programmable Event Generation engine, built-in 3-axis g-force measurements, multiple power management sleep modes, leading GPS sensitivity tracking technologies, and multiple interfaces all brought together under a flexible Linux operating system.

The LMU-5530 comes equipped with two Ethernet 10/100 ports, both host and device OTG USB, RS232/RS485 serial port, switched power TTL serial port, two 1-wire busses, seven inputs, seven outputs, and five A/D inputs. The LMU-5530 also supports advanced peripherals including laptops, USB dongles, Mobile Data Terminals (MDT’s), RFID tags, and more.

Location and tracking

  • GPS\GLONASS Support
  • Continuous tracking mode
  • LBS Support

Mobile networks

  • 700/800/850/900/1800/1900/2100/2600 MHz
  • 3G / 4G Network

Power supply

Operating Voltage:

  • 9-30 VDC (Start-up, Operating)
  • 8-32 VDC (Momentary)

Power Consumption:

  • <2mA @ 12V (Deep Sleep)
  • 160mA @ 12V (Idle on Network)
  • 270mA @ 12V (Active Tracking)

1000 mAh Li-Ion backup battery

Inputs and outputs

  • 7 Discrete input
  • 5 Analog input
  • 7 Digital outputs
  • 2 1-Wire Interfaces

Other features

  • Remote management
  • LED indication
  • Accessories

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47710

General information

PurposeRouter
InstallationProfessional

Housing

Weight227 g (8.01 oz.)
Size146x102x40 mm (5.75x4.02x1.57 in)

GNSS Location

Internal antenna (GNSS)Yes
External antenna (GNSS)Yes
GPSYes
GLONASSYes
Assisted GPSYes

Connectivity

Cellular network typeHPSA/UMTS 850/900/1900/2100
Internal antenna (Connection)Yes
External antenna (Connection)Yes
Cellular network generation4G, 3G

Interfaces

Number of RS232 interfaces1
Number of outputs7
Number of inputs (all types)12
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
RS232 interfaceYes
Supported
RS485 interfaceYes
Supported
1-Wire interfaceYes
Supported
OutputsYes
Supported

Hardware features

Battery capacity1000 mAh
Built-in batteryYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS)
Supported
Forced GNSS location update over SMSYes
Supported
