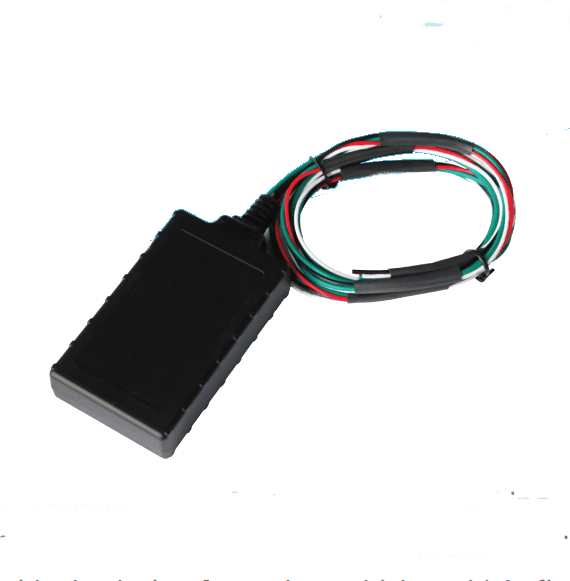

CalAmp LMU-400

The LMU-400 is an economical, full-featured vehicle tracking product designed for easy and reliable installation in automobiles. The LMU-400 is an ideal solution for stolen vehicle, vehicle finance, auto rental and other automotive track and trace applications when internal back-up battery is required.

Show more

Location and tracking

  • GPS Support
  • Continuous tracking mode
  • LBS Support

Mobile networks

  • 800/850/900/1700/1900/2100 MHz
  • 2G/3G Network

Power supply

  • Build-in battery (200 Li-Ion)
  • External power supply (9-30 V)

Inputs and outputs

  • 1 Discrete inputs
  • 3 Digital outputs

Other features

  • Remote management
  • AGPS
  • Internal buzzer
  • 10 built-in geo-fences

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47710
Auto registrationYes

General information

PurposeVehicle
Weight106 g (3.74 oz.)
Size53x96x19 mm (2.09x3.78x0.75 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Roaming statusYes
Network signal levelYes
Cellular network typeDual-Band GSM
Cellular network generation2G
Network operator IDYes

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes
GPSYes
Assisted GPSYes

Features

Remote outputs controlYes
OdometerYes

Interfaces

Discrete inputs1
Number of outputs3
Analog sensorYes
