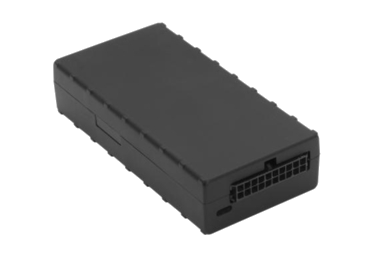

CalAmp LMU-2600

CalAmp LMU-2600 fleet tracking unit offers leading edge fleet management features including a triple-axis accelerometer for measuring driver behavior and vehicle impacts while offering the high reliability fleet customers demand.

Show more

Location and tracking

  • GPS Support
  • Continuous tracking mode
  • LBS Support

Mobile networks

  • 800/850/900/1700/1900/2100 MHz
  • 2G / 3G Network

Power supply

Operating Voltage:

  • 9-30 VDC (Start-up, Operating)
  • 7-32 VDC (Momentary)

Power Consumption:

  • 7 mA @ 12V <500 uA (deep sleep)
  • 20 mA @ 12V (idle on network)
  • 150 mA @ 12V (active tracking with VBUS active)

Inputs and outputs

  • 5 Discrete input
  • 2 Analog input
  • 3 Digital outputs
  • 1-Wire Interface
  • 2 power TTL ports

Other features

  • Remote management
  • LED indication
  • Accessories

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47710
Auto registrationYes

General information

PurposeVehicle
Size93.57x52.88x19.68 mm (3.68x2.08x0.77 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Roaming statusYes
Network signal levelYes
Cellular network typeHPSA/UMTS 850/900/1900/2100
Cellular network generation3G, 2G
Network operator IDYes

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes
GPSYes
Assisted GPSYes

Features

Remote outputs controlYes
OdometerYes
Hardware keyYes

Interfaces

Discrete inputs6
Number of outputs3
Analog sensorYes
1-Wire interfaceYes
