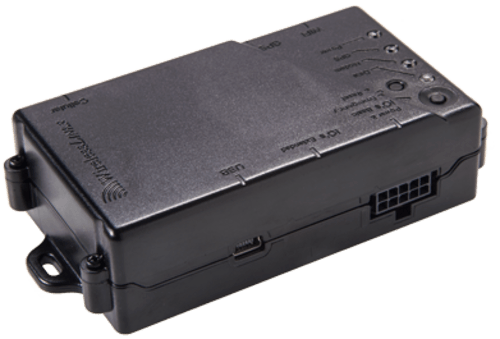

Wireless Links Piccolo Plus

Piccolo Plus is an extremely advanced vehicle tracker. It can read CANbus OBDII, K-Line, J1939, and J1708 data and track driver behavior. It also functions as an in-cabin WiFi Hotspot and a wireless router allowing communication of any mobile device to the internet.

Show more

Location and tracking

  • GPS
  • Interval and continuous tracking modes
  • LBS

Mobile networks

  • 2G Quad-Band, 3G European: 900/1800/2100 or 3G US 850/1900 MHZ
  • 2G / 3G /4G

Power supply

  • Build-in 1000 mA battery

Inputs and outputs

  • 3 digital inputs
  • +3 digital inputs (optional)
  • 1 analog input
  • +1 analog input (optional)
  • 1 digital output
  • +1 digital output (optional)

Other features

  • Built-in WiFi Hotspot
  • Emergency button
  • Local and remote management
  • Flame retardant ABS/PC IP31 case
  • Operating Temperature: -30° to 80°C
  • Storage Temperature: -40° to 105°C

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47671
Auto registrationYes

General information

PurposeVehicle
Weight110 g (3.88 oz.)
Size100x58x30 mm (3.94x2.28x1.18 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Cellular network typeGSM Quad Band
Cellular network generation3G, 4G, 2G
WiFiYes

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes
GPSYes

Features

Remote outputs controlYes
OdometerYes
Hardware keyYes
Built-in batteryYes
Battery capacity1000 mAh

Interfaces

Discrete inputs7
Number of outputs2
Analog sensorYes
