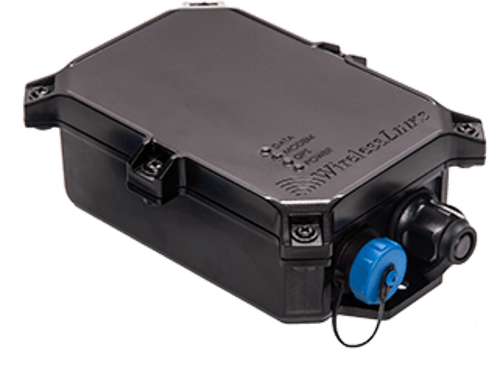

Wireless Links Piccolo TMX+
Piccolo TMX+ is a portable temperature monitoring device perfect for cargo tracking. Packaged in an IP67 waterproof enclosure with integrated GPS and cellular antennas equipped with an 7800 mAh rechargeable lithium back up battery and an external digital temperature sensor with +/- 0.5˚ C, +/- 0.9˚F accuracy, the Piccolo TMX+ monitors the temperature in a closed area such as a refrigerated truck, trailer or reefer container, and will transmit it periodically to the server.
Show more
Location and tracking
- GPS
- interval and continuous tracking modes
- LBS
Mobile networks
- 2G Quad-Band, 3G European: 900/1800/2100 or 3G US 850/1900 MHZ
- 2G / 3G /4G
Power supply
- Build-in 7800 mA battery
Inputs and outputs
- Optional 1 analog input
- Optional 2 digital inputs
Other features
- IP67 waterproof
- Local and remote management
- Operating Temperature: -30º to 80º C
- Storage Temperature: -40º to 105º C
- Humidity: 0 to 99% 40C, non-condensing
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47671 |
| Auto registration | Yes |
General information
| Purpose | Asset |
| Weight | 105 g (3.7 oz.) |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
Interfaces
| Discrete inputs | 2 |
| Analog sensor | Yes |
Input Fields
Events monitoring
