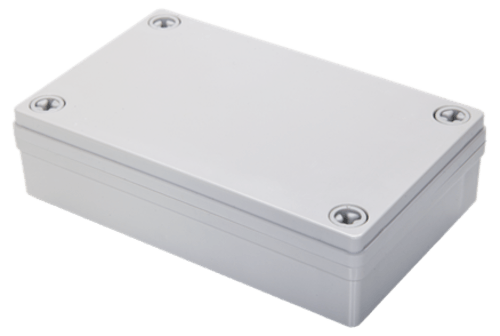

Wireless Links Piccolo ATX

Piccolo ATX is an advance asset tracking device. Two standard Type C High Current lithium batteries allow it to stay working up to 5 years.

Show more

Location and tracking

  • GPS
  • interval tracking mode
  • LBS

Mobile networks

  • GSM/GPRS or EDGE/HSPA+ (3G) or 4G LTE, CAT-1, CATMGSM/GPRS or EDGE/HSPA+ (3G) or 4G LTE, CAT-1, CATM
  • 2G / 3G /4G

Power supply

  • 2 C size high current lithium batteries

Inputs and outputs

  • 1 optional discrete input

Other features

  • 3 mounting options – magnet, tape, and screws
  • Operating Temperature: -30° to 80°C
  • Storage Temperature: -40° to 105°C
  • IP67 waterproof case

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47671

General information

PurposeAsset
InstallationDIY

Housing

Weight170 g (6 oz.)
Size132x82x34 mm (5.2x3.23x1.34 in)
Waterproof classIP67
Magnet mountingYes

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of inputs (all types)1
Discrete inputsYes
Supported

Hardware features

Built-in batteryYes
Supported
Internal temperature sensorYes
Supported

Tracking features

Tracking modesInterval
Location by Cell IDYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Forced LBS location update over GPRSYes
Supported
Forced GNSS location update over SMSYes
Supported

Certification

CEYes
FCCYes
