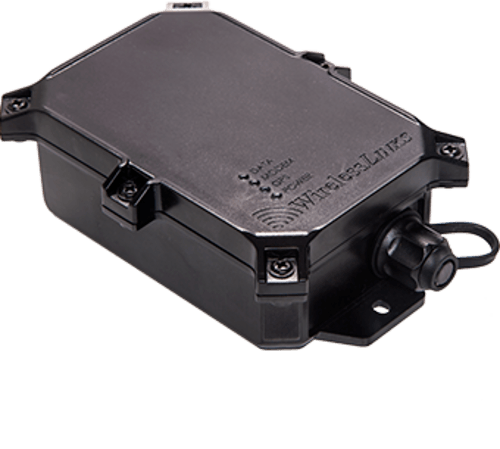

Wireless Links Piccolo Hybrid+

Piccolo Hybrid+ is a portable device suitable both for vehicle and asset tracking. Waterproofing and a wide temperature range make it extremely durable. The tracker is easy to mount, with 3 options available - magnet, tape, and screws.

Show more

Location and tracking

  • GPS – MTK 66 Channels
  • Interval and continuous tracking modes
  • LBS

Mobile networks

  • 2G Quad-Band, 3G European: 900/1800/2100 or 3G US 850/1900 MHZ
  • 2G / 3G /4G

Power supply

  • Build-in 7800 mA battery
  • When connected to an external power, battery will automatically recharge

Inputs and outputs

  • 2 digital inputs
  • 1 analog input

Other features

  • Local and remote management
  • IP67 waterproofing
  • Magnet, tape or screw mounting
  • Operating Temperature: -30º to 80º C
  • Storage Temperature: -40º to 105º C

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47671

General information

PurposeVehicle, Asset
InstallationNot required, DIY

Housing

Weight105 g (3.7 oz.)
Size125x87x41 mm (4.92x3.43x1.61 in)
Waterproof classIP67

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation3G, 4G, 2G

Interfaces

Number of inputs (all types)3
Discrete inputsYes
Supported
Analog inputsYes
Supported

Hardware features

Battery capacity7800 mAh
Built-in batteryYes
Supported
Internal temperature sensorYes
Supported

Hardware extras

External temperature sensor readingYes

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported
OdometerYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII parametersFuel consumption, Engine RPM, Engine load, DTC errors
DTC codes readingYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Forced LBS location update over GPRSYes
Supported
Forced GNSS location update over SMSYes
Supported
