AMGPS Echo D/E

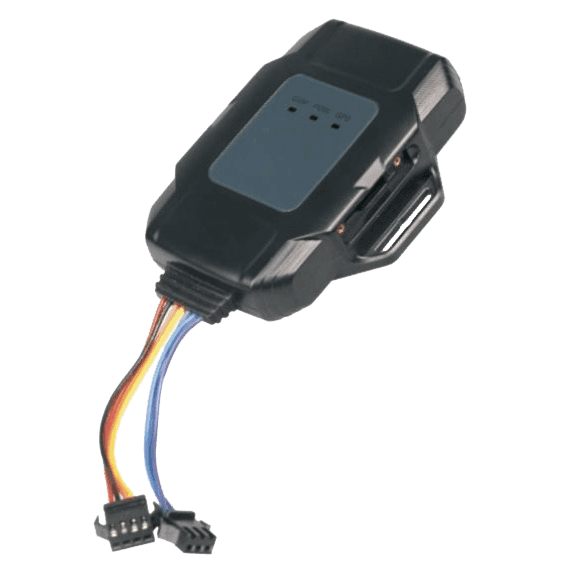

AMGPS Echo D/E is a compact motorcycle GPS tracker. It is a small but functional device with built-in GPS and GSM antennas and some security options like SOS alarm, Tele-cut off function for petrol and cable cut-off alarm.

Show more

Location and tracking

AMGPS Echo D/E is embedded with GPS, it doesn’t support GLONASS or alternative systems.

There are only two basic tracking modes, which do not provide too much flexibility: by time interval and by distance.

As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

AMGPS Echo D/E has a Quad-band GSM 2G that allows to operate it all over the world.

Local and remote management

AMGPS Echo D/E can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

AMGPS Echo D/E has three LED indicating:

  • Power status
  • GSM/GPRS mode
  • GPS signal reception

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47755
Auto registrationYes

General information

PurposeVehicle
Size86.6x59x19.2 mm (3.41x2.32x0.76 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Cellular network typeGSM Quad Band
Cellular network generation2G

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes
GPSYes

Features

Remote outputs controlYes
OdometerYes
Built-in batteryYes
Battery capacity800 mAh

Interfaces

Discrete inputs3
Number of outputs1
