AMGPS HF-Talk

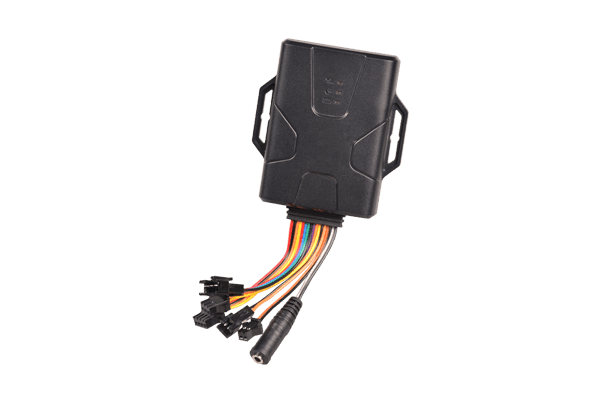

AMGPS HF-Talk Vehicle GPS Tracker is a high-end multifunctional vehicle GPS tracker with solid performance for reasonable price. In addition to GPS and AGPS tracking. This GPS tracker device supports door status detection, two-way communication as well as SOS call.

Show more

Package contents

AMGPS HF-Talk is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.

The standard package contains:

  • Device
  • Power cord
  • 4-pin Relay
  • Microphone
  • SOS alarm cable & button
  • User Manual
  • Extension cable
  • Speaker

Location and tracking

AMGPS HF-Talk is embedded with GPS, it doesn’t support GLONASS or alternative systems.

As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

AMGPS HF-Talk has a Quad-band GSM 2G that allows to operate it all over the world.

Power supply

HF-Talk features a rechargeable 800 mAh battery. When fully charged it ensures about 3-5 hours of device operation (in normal conditions).

Local and remote management

HF-Talk can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

AMGPS HF-Talk has three LED indicating:

  • Backup battery charge
  • GSM/GPRS mode
  • GPS signal reception

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47755
Integrated on05/02/2015

General information

PurposeVehicle
InstallationProfessional

Housing

Weight615.5 g (21.71 oz.)
Size93x76x18 mm (3.66x2.99x0.71 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs2
Number of inputs (all types)8
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
OutputsYes
Supported

Hardware features

Battery capacity800 mAh
Built-in batteryYes
Supported
Emergency buttonYes
Supported

Hardware extras

External temperature sensor readingYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS), Yes
Supported
Forced GNSS location update over SMSYes
Supported

Certification

CEYes
FCCYes
