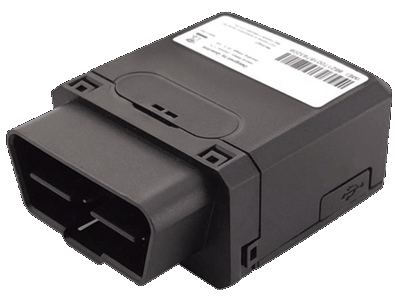

AMGPS OBD-i500

AMGPS OBD-i500 is an OBDII tracker that easily plugs into vehicle's diagnostic port. Thanks to sensitive GNSS chip from u-blox, A-GPS technology and two GNSS antennas it provides accurate location and reliable tracking. The device supports all major OBDII protocols and delivers much of the information from vehicle's diagnostic systems.

Show more

Location and tracking

AMGPS OBD-i500 comes with modern GNSS chip from u-blox, which has high sensitivity and receives signals of GPS, GLONASS and other systems. Besides it supports Assisted GPS (A-GPS) technology for faster location acquiring. To provide even better sensitivity the device is embedded with two GPS antennas (for manufacture dates starting from December 2015). The second antenna serves as a backup in case the main antenna does not perform well in some specific situations (OBDII trackers are often placed under the wheel’s column where GPS signals are weaker). All of these give a positive impact on the quality of tracking.

As for the tracking modes, they are fully adjustable: by time and distance intervals, direction change. The device has power saving modes and well detects the movement status according to the Ignition stat (PIN #1) and smart proprietary algorithm based on internal G-Sensor.

OBDII diagnostic data

AMGPS OBD-i500 reads a lot of data from an vehicle’s diagnostic system. The tracker supports many standards (J1850 PWM, J1850 VPW, ISO 9141-2, ISO 14230, ISO 15765, J1939, CAN_USER1, CAN_USER2 and VW TP2.0) and on this criterion is considered one of the best OBDII devices. With OBD-i500 you can retrieve the following information:

  • Fuel level
  • Fuel consumption
  • Dashboard speed
  • Coolant temperature
  • Throttle position
  • Engine load
  • VIN – Vehicle Identification Number
  • and other

It also provides information about MIL (Malfunction Indicator Lamp – Check Engine) and DTC error codes.

Supported car models

Events detection

The number of detected events far exceeds the typical amount for OBDII trackers. OBD-i500 hardware and firmware process such events as Tow, Harsh driving (braking, cornering, acceleration), Long idling (with engine working), Detach from OBDII socket, Low external power voltage, Low backup battery, Signal jamming and others.

Power supply

Advanced power management helps to provide lower power consumption and that device can work for many hours even in active mode.

Accessories

For specific installations an OBDII extension cable can be offered.

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47764
Integrated on06/09/2013

General information

PurposeVehicle
InstallationNot required

Housing

Weight42 g (1.48 oz.)
Size48x25x48 mm (1.89x0.98x1.89 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes
GalileoYes
BeidouYes
Assisted GPSYes
Chipsetu-blox

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
External antenna (Connection)No
Cellular network generation2G

Hardware features

Battery capacity130 mAh
Built-in batteryYes
AccelerometerYes

Hardware extras

Fuel level sensor readingYes
Supported
Driver ID readingYes
Supported

Tracking features

Location by Cell IDYes
Supported
Smart power consumptionYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

External power cut offYes
Supported
Car crashYes
Supported
TowingYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
GNSS satellites fixedYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII reader typeYes, Internal
Supported
CAN/OBDII parametersYes, Fuel level, fuel consumption, engine RPM, throttle position, speed, engine load, coolant temperature, DTC error codes and other
Supported
DTC codes readingYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Forced LBS location update over GPRSYes
Supported
Forced GNSS location update over SMSYes
Supported
