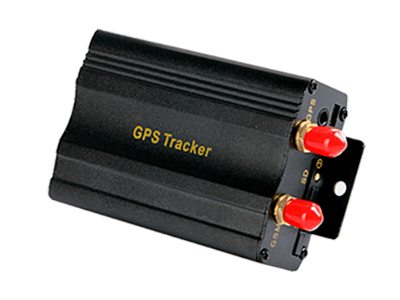

Coban GPS103A/B is a cost-effective vehicle tracking device.
A and B modifications
The difference between “A” and ”B” modifications is the support of the remote controller by “B” model. It has four buttons and allows to control alarm mode (ON/OFF), engine cut relay and send emergency signal (SOS).
Package contents include:
- External GPS Antenna
- External GSM Antenna
- 10-pin harness
- Engine block relay
Location and tracking
GPS103A/B model is embedded with GPS and doesn’t have support of GLONASS and alternative systems. It either doesn’t support Assisted GPS (A-GPS) technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).
Also, the tracker supports turnings. It will update the positions automatically to web server once the vehicle changing driving direction over pre set angle (30 degrees) to form a smooth trajectory consistent with the actual road, this function is only effective in GPRS mode.
With Quad-band GSM 2G module GPS103A/B can be operated all over the world.
External power supply might be 12V or 24V, which makes possible to install GPS103 both on cars and vans.
GPS103 also features a built-in rechargeable backup battery. When fully charged it ensures about 3-4 hours of device operation (in normal conditions).
Both GPS103A/B have one input reserved for SOS button (also included into the package). To send the SOS signal it’s required to hold the button pressed within 3 seconds.
For “B” model it is also duplicated on the optional wireless remote controller.
Local and remote management
GPS103A/B tracker can be fully controlled over GPRS, including configuration of tracking modes and controlling outputs. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.
GPS103A/B has two LEDs
- Red LED indicates GSM/GPRS mode
- Green LED indicates GPS reception
GPS103A/B features a micro SD slot, so you can install a micro SD card into it and store all data there. Later you can analyze it, using proprietary software.
The manufacturer offers original accessories:
- Shock sensor
- Fuel Sensor
- Remote controller (for “B” model only)
|EU platform||tracker.navixy.com (18.104.22.168)|
|US platform||tracker.us.navixy.com (22.214.171.124)|
|Weight||120 g (4.23 oz.)|
|Network operator ID||Yes|
|Remote outputs control||Yes|
|Number of outputs||2|
