Zenda VT-2

More from Zenda

Zenda VT-1

Zenda VT-1

Zenda VT-2

Zenda VT-2

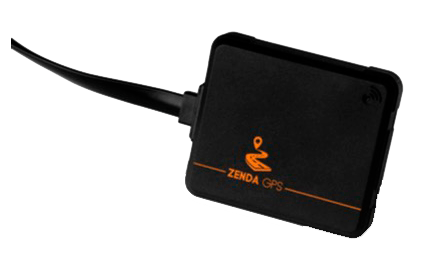

Zenda VT-2 is a vehicle GPS tracker that features compact size, stable performance, precise positioning, and IP66 water resistance rating. It can be installed into taxies, freight cars, buses, private cars, and official cars for real-time tracking and vehicle management.

Show more

In addition to real-time tracking and vehicle management functions, it is equipped with the anti-theft function (optional). With the device, you can control the vehicle fuel/power remotely via anti-theft alarms and fuel/power control ports to achieve anti-theft.

Package contents

Zenda VT-2 package contains the following device/accessories:

  • Device with a built-in battery
  • Quick Installation guide

Product features:

  • GPS + GSM dual-module tracking
  • Real-time location query
  • Track by time interval/distance
  • Heartbeat report
  • Real-time status query
  • Resend cached data when the GPS signal recovers
  • Heading change report
  • Speeding alarm
  • Geo-fence (1 geo-fence supported)
  • Vehicle stealing alarm
  • Vibration alarm
  • Arming/disarming
  • Remote fuel/power cut-off (optional)
  • Engine status detection
  • SMS/GPRS (TCP) communication (ZENDA protocol)
  • External power cut-off alarm
  • Low battery alarm
  • IP66 water resistance rating
  • Built-in 4 MB buffer

Location and tracking

Zenda VT-2 is embedded with GPS. It does not support A-GPS, or GLONASS technology.

As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

Zenda VT-2 has a Quad-band GSM 2G module that allows to operate it all over the world.

Power supply

External power supply might be 9-90V, which makes possible to use Zenda VT-2 with all car models.

Local and remote management

Zenda VT-2 can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

Zenda VT-2 model has three LEDs:

  • Power LED – indicates power status
  • GPS LED – indicates GPS signal
  • GSM LED – indicates GSMS signal

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47755
Auto registrationYes

General information

PurposeVehicle
Size64.2x55.6x15 mm (2.53x2.19x0.59 in)
Waterproof classIP6X
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Cellular network typeGSM Quad Band
Cellular network generation2G

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes
GPSYes

Features

Remote outputs controlYes
OdometerYes
Built-in batteryYes
Battery capacity95 mAh

Interfaces

Discrete inputs3
Number of outputs1
