Satellite Solutions SAT-PRO

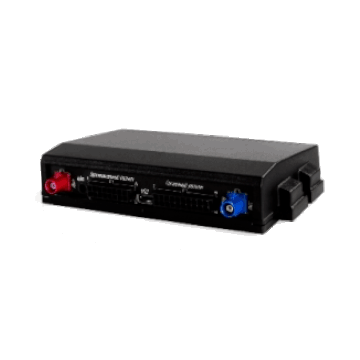

SAT-PRO is a tracker, which allows to monitor various parameters of the vehicle and the equipments installed on it. SUPER-LITE has 6 universal pulse-frequency inputs and 3 outputs. Also SAT-PRO tracker allows two-way communication between dispatcher and driver. The device has three operation modes: "Sleep", "Active" and "Roaming", user is able to choose any mode for comfortable monitoring.

Show more

Location and tracking

  • GPS, GLONASS support
  • Continuous tracking mode
  • LBS support

Mobile networks

  • 2G Network

Power supply

  • Build-in battery (400 mAh)
  • External power supply (7 – 44V)

Inputs and outputs

  • 6 Universal discrete inputs
  • 2 Analog inputs
  • 3 Outputs

Other features

  • External emergency button support
  • Loacal and remote management
  • LED indication

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47722

General information

PurposeVehicle
InstallationProfessional

Housing

Weight115 g (4.06 oz.)
Size145х94х28 mm (5.71x3.7x1.1 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs3
Number of inputs (all types)8
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
Impulse inputsYes
Supported
Frequency inputsYes
Supported
RS232 interfaceYes
RS485 interfaceYes
1-Wire interfaceYes

Hardware features

Emergency buttonYes
On request

Hardware extras

Fuel level sensor readingYes
Supported
Driver ID readingYes
Supported
External temperature sensor readingYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII reader typeExternal
On request

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over SMS)
Supported
Remote outputs controlYes (over SMS)
Forced GNSS location update over SMSYes
Supported
