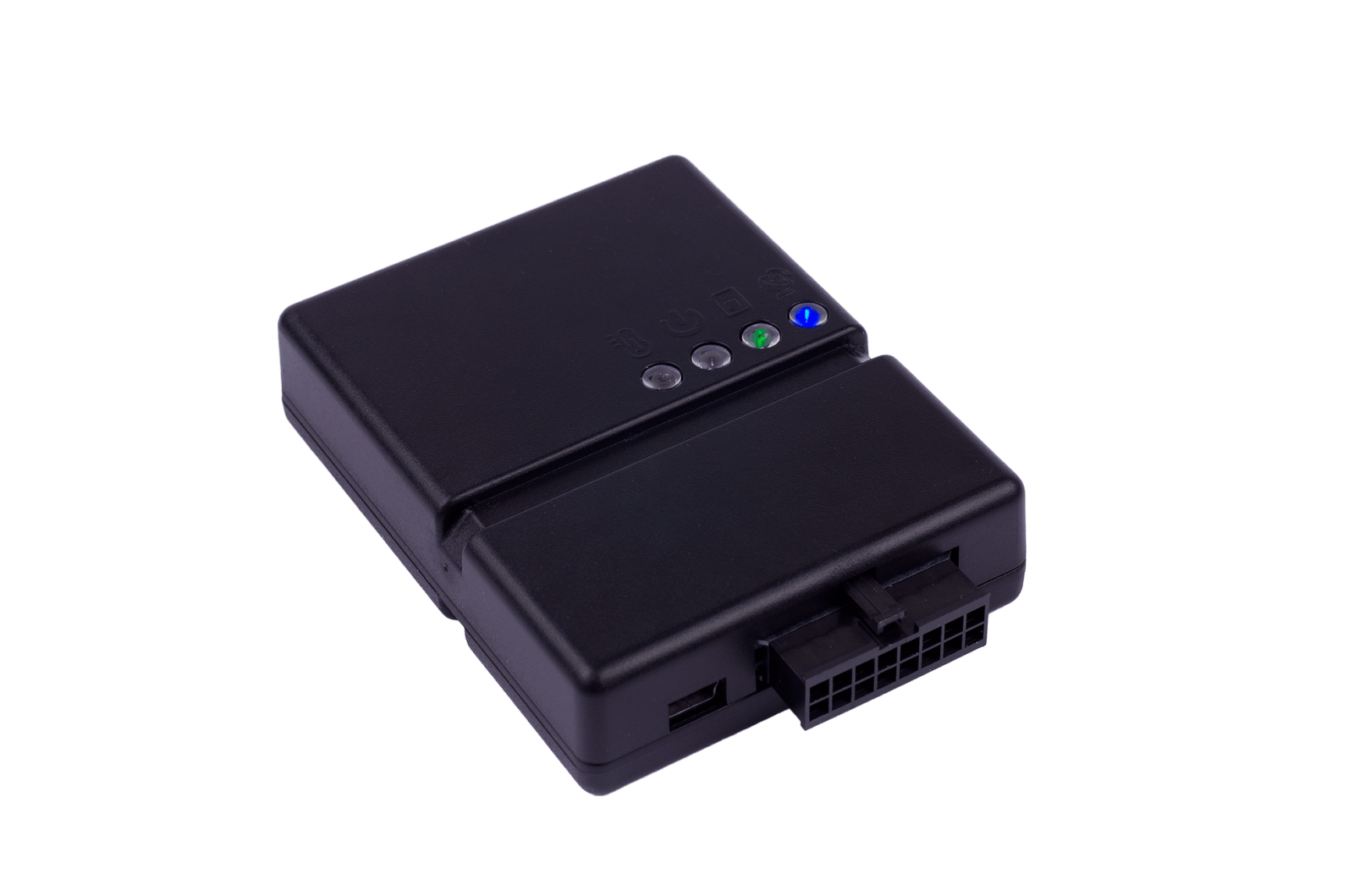

Satellite Solutions SAT-LITE 4

This tracker is a compact electronic device with built-in GPS/GLONASS and GSM modules. Has analog and digital inputs, 1-wire.

Show more

Location and tracking

  • GPS, GLONASS
  • Interval and continuous tracking modes
  • LBS

Mobile networks

  • 2G

Power supply

  • Build-in battery 380 mAh
  • External power supply 8-40V

Inputs and outputs

  • 1 Universal input (digital, pulse-frequency, analog)

Other features

  • External CAN reader
  • Working temperature from –40°С to +60°С

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47722

General information

PurposeVehicle
InstallationNot required

Housing

Weight100 g (3.53 oz.)
Size94x88x27 mm (3.7x3.46x1.06 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of inputs (all types)2
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
Impulse inputsYes
Supported
Frequency inputsYes
Supported
1-Wire interfaceYes

Hardware features

Battery capacity380 mAh
Built-in batteryYes
Supported
Internal temperature sensorYes
Supported

Hardware extras

Fuel level sensor readingYes
Supported
Driver ID readingYes
Supported
External temperature sensor readingYes
Supported

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported
OdometerYes
Supported

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII reader typeExternal
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Forced GNSS location update over SMSYes
Supported
