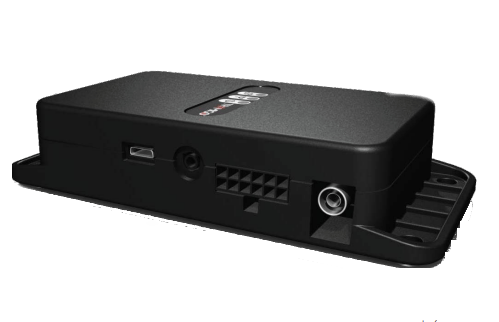

Tramigo T23 Fleet

Tramigo T23 Fleet is a GPS tracker which is easy to implement. T23 Fleet is robust to install to any car, truck or other vehicle and can be fully hidden. Insert the SIM card and connect T23 Fleet to vehicle power and you are ready to control your vehicle. T23 Fleet communicates its location to your monitoring system or mobile device via GPRS or SMS.

Show more

Location and tracking

  • GPS, GLONASS Support
  • Continuous tracking mode

Mobile networks

  • 850/900/1800/1900 MHz
  • 2G Newtork

Power supply

  • Build-in battery (1300 mAh Li-Po)
  • External power supply (6 – 32 DC)

Inputs and outputs

  • 4 Discrete inputs
  • 1 Analog input
  • 2 Digital outputs

Other features

  • Emergency button
  • 1-Wire
  • Driver ID reading

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47731

General information

PurposeVehicle
InstallationProfessional

Housing

Weight165 g (5.82 oz.)
Size130x60x26 mm (5.12x2.36x1.02 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs2
Number of inputs (all types)5
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
1-Wire interfaceYes
Supported

Hardware features

Emergency buttonYes
Supported
Internal temperature sensorYes
On request

Hardware extras

Emergency buttonYes
Supported
Driver ID readingYes
Supported
External temperature sensor readingYes
Supported

Tracking features

Tracking modesContinuous
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS)
Supported
Forced GNSS location update over SMSYes
On request
