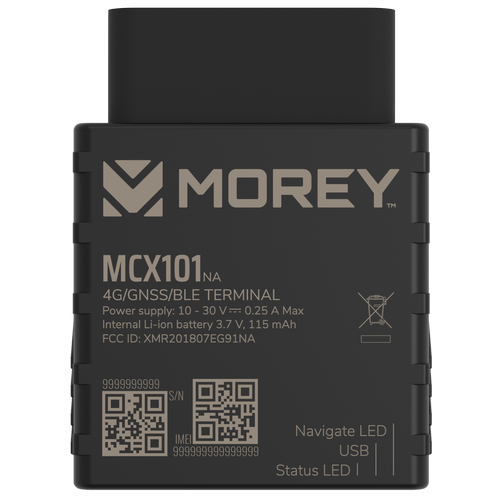

Morey MCX101

Morey MCX101 is Plug and Track LTE OBD device with GNSS and Bluetooth connectivity. Possibility to read OBD II parameters, effortless installation and detailed accelerometer data provides a compelling solution. This is perfect tracker for a wide range of applications – fleet management of light commercial vehicles, car rental & leasing, driver log-book, insurance telematics (UBI) and so on. Device supports various Bluetooth Low Energy sensors, beacons, firmware and configuration update via Bluetooth.

Show more

Location and tracking

  • GPS, GLONASS
  • Continuous tracking mode
  • LBS support

Mobile networks

  • 4G (LTE CAT1), 3G (UMTS/HSPA+) and 2G (GSM/GPRS/EDGE) networks.

Power supply

  • External power supply voltage range 10 – 30 V DC;
  • Internal 170 mAh 3.7 V (0.63 Wh) Li-Ion back-up battery.

Protection

  • Power supply overvoltage protection;
  • IP41 ingress protection rating .

Inputs

  • OBDII socket

Other features

  • 2 status LED lights
  • Accelerometer

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776

General information

PurposeVehicle
InstallationDIY

Housing

Weight63 g (2.22 oz.)
Size67.2x49.6x25 mm (2.65x1.95x0.98 in)
Waterproof classIP41

GNSS Location

Assisted GPSYes

Hardware features

Battery capacity170 mAh
Built-in batteryYes
Supported
Emergency buttonNo
AccelerometerYes

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Self monitoring

Network signal levelYes
Supported
Network roaming statusNo
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII parametersFuel level, Engine RPM, Engine load, Throttle position, Check engine (MIL), DTC error codes, Coolant temperature, Mileage

Remote management

Remote device configurationYes (over GPRS)
Supported
Forced LBS location update over GPRSNo
Forced GNSS location update over SMSYes
On request
