Kingneed T500

Kingneed T500 is a specialized cow-GPS tracker with basic functionality. The main purpose is cattle tracking. The device features water-proof design, and large internal battery with an optional support of solar panels which prolong the battery life. It also has special collar for the best fixation on the cow.

Show more

Package content

Package contents:

  • GPS device
  • Collar
  • User manual

Location and tracking

Kingneed T500 is embedded with U-BLOX G7020-ST chip and doesn’t have support of GLONASS and alternative systems. However it supports Assisted GPS (A-GPS) technology.

There are two basic continuous tracking modes (by time interval and by distance) and interval tracking mode (see “Sleep by schedule” below).

Since T500 has no built-in memory, when user leaves GSM coverage area all tracking data will be lost.

Mobile networks

With Quad-band GSM module T500 can be operated all over the world where 2G networks exist.

Power supply

It’s claimed that fully charged battery can last from 1 to 2 days, depending on the GSM and GPS signal conditions. T500 also has several tracking mode options:

  • “routetrack” – tracker won’t sleep, GSM module is always ON, and the device sends its coordinates each N seconds while the tracker is moving. GPS module is turned off if the device is not moving.
  • “check” – tracker connects to the server each N minutes, and passes its coordinates regardless of moving state. GSM module is always ON. GPS module is turned each N minutes.
  • “sleep” – deep sleep mode. The device sends its coordinates each N hours, after that it falls asleep again. GSM and GPS modules are turned on each N hours
  • “periodlocate” – this mode allows to set up to three intervals in which the device will work similar to “routetrack” mode. All other time the device will fall to a deep sleep.

Local and remote management

Kingneed T500 tracker has two general modes for GSM communication: SMS and GPRS. In GPRS mode it sends data to server and can be controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

Additional features

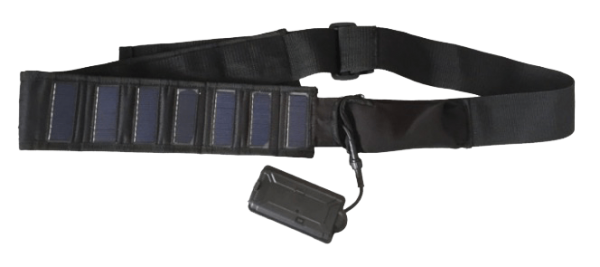

Kingneed T500 features optional solar panels, which may be used with the collar to prolong the tracker battery life.

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port46998

General information

PurposePet
InstallationNot required

Housing

Weight50 g (1.76 oz.)
Size64x46x17 mm (2.52x1.81x0.67 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
Assisted GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Hardware features

Battery capacity3000 mAh
Built-in batteryYes
Supported

Tracking features

Tracking modesInterval, Continuous

Events monitoring

Battery lowYes
Supported
DetachYes
Supported

Self monitoring

Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Forced GNSS location update over SMSYes
Supported

Certification

CEYes
FCCYes
