Keson KS168

More from Keson

Keson KS168

Keson KS168

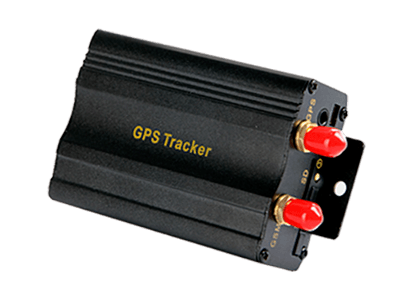

Keson KS168 is a cost-effective vehicle tracking device.

Show more

Package contents

Package contents include:

  • Microphone
  • External GPS Antenna
  • External GSM Antenna
  • 10-pin harness
  • Engine block relay

Location and tracking

KS168 model is embedded with GPS and doesn’t have support of GLONASS and alternative systems. It either doesn’t support Assisted GPS (A-GPS) technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Also, the tracker supports turnings. It will update the positions automatically to web server once the vehicle changing driving direction over pre set angle (30 degrees) to form a smooth trajectory consistent with the actual road, this function is only effective in GPRS mode.

Mobile networks

Keson KS168 has a Quad-band GSM 2G module that allows to operate it all over the world.

Power supply

External power supply might be 12V or 24V, which makes possible to install KS168 both on cars and vans.

KS168 also features a built-in rechargeable backup battery. When fully charged it ensures about 3-4 hours of device operation (in normal conditions).

Local and remote management

Keson KS168 tracker can be fully controlled over GPRS, including configuration of tracking modes and controlling outputs. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

Keson KS168 has two LEDs

  • Red LED indicates GSM/GPRS mode
  • Green LED indicates GPS reception

Accessories

The manufacturer offers original accessories:

  • Fuel sensor
  • Card tele-phone
  • Temperature sensor
  • Camera
  • LED advertisement screen
  • LCD scheduling screen
  • RFID reader
  • Switch door sensor
  • Vibration sensor
  • Concrete reversing sensor
  • Speaker
  • Microphone
  • SOS button
  • Relay

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47734
Auto registrationYes

General information

PurposeVehicle
Size83x54x26 mm (3.27x2.13x1.02 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes
External antenna (GNSS)Optional
External antenna (Connection)Optional

Connectivity information

Cellular network typeGSM Quad Band
Cellular network generation2G

Location information

GNSS signal levelYes
LBSYes
GPSYes

Features

Remote outputs controlYes
OdometerYes
Built-in batteryYes
Battery capacity800 mAh

Interfaces

Discrete inputs4
Number of outputs2
Analog sensorYes
RS485 interfaceNo
