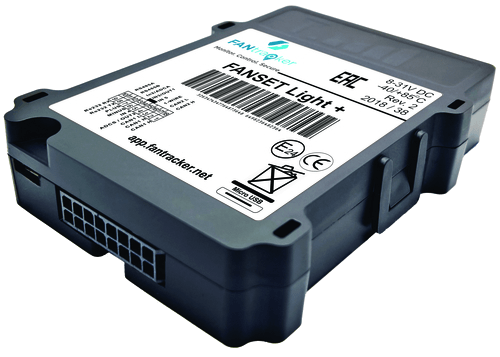

Fanset FM-500 Light+
Fanset FM-500 Light+ is an advanced vehicle tracker with ignition monitoring, output control, and jamming detection feature. Fanset FM-500 Light+ is able to help you in driving quality monitoring by using car crash detections and Eco driving. Device works in 8-31 V voltage range, supports RS-232 RS-485 and 1 wire interfaces. FANSET Light + is the device with discrete / analog / impulse / frequency sensors connectivity and CAN interface connectivity. Also, FANSET Light+ tracker supports LBS and A-GPS technologies and has overvoltage protection.
Package contents
BCE FM-500 Light+ package content includes:
- BCE FM-500 Light+ device
- External GPS antenna
- Wires + 1A Fuse
Also, the device can be sent with optional internal back up 700mAh battery, as claimed by manufacturer.
Location and tracking
FM-500 Light+ model is embedded with GPS chip and it supports GLONASS as well. It also supports Assisted GPS (A-GPS) technology. It uses Cell ID location (also known as LBS-tracking) as the back-up, when no satellites signals are available.
Mobile networks
With a Quad-band GSM module BCE FM-500 Light+ can operate all over the world where 2G networks are supported.
Features
BCE FM-500 Light+ model features all functions of BCE FM-500 Light device (as well as 1-Wire (iButton)), but also it has few additions:
- RS-232
- EIA-485
It allows users/dealers to adjust the device to meet their specific requirements.
Power supply
External power supply range might be 9V – 40V, which makes possible to install device both on cars and vans.
Local and remote management
BCE FM-500 Light+ can be fully controlled over GPRS, including configuration of tracking modes and outputs control. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.
Also, you can configure and manage the device via the manufacturer’s software “BCE configurator”.
LED Indication
BCE FM-500 Light+ has one LED for GSM/GPS status.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
General information
| Size | 26x80x55 mm (1.02x3.15x2.17 in) |
| Internal antenna (GNSS) | No |
| Internal antenna (Connection) | Yes |
| External antenna (GNSS) | Yes |
Connectivity information
| Cellular network type | GSM Quad Band |
| Cellular network generation | 2G |
Location information
| GPS | Yes |
| GLONASS | Yes |
| Assisted GPS | Yes |
Interfaces
| RS485 interface | Yes |
| 1-Wire interface | Yes |
