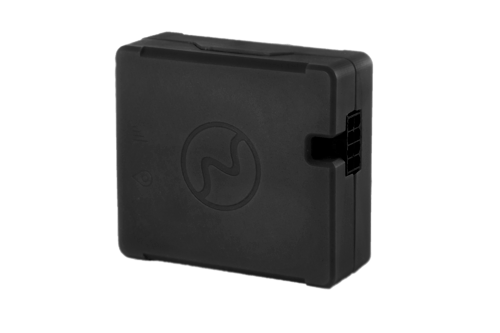

Fanset ADM333

Fanset ADM333 is designed to be mounted onto the vehicle to register its location, speed and driving direction, behavior by signals from GLONASS/GSP system. In addition, it registers a number of other parameters, such as the state of analog and digital inputs, and signals from sensors (sensor readings).

Show more

Location and tracking

  • GPS, GLONASS
  • Continuous tracking mode

Mobile networks

  • GSM/GPRS 800/900/1800/1900
  • 2G

Power supply

  • Build-in battery Li-Pol 1000mA/h 3.7 V
  • External power supply (8.5 – 40 V DC)

Inputs and outputs

  • 2 analog inputs
  • 2 digital (impulse) inputs
  • RS-485 interface
  • 1 digital outputs

Other features

  • LED indication
  • CAN reader

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47758

General information

PurposeVehicle
InstallationProfessional

Housing

Weight125 g (4.41 oz.)
Size90x60x32 mm (3.54x2.36x1.26 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Cellular network typeGSM/GPRS 850/900/1800/1900
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs1
Number of inputs (all types)4
Discrete inputsYes
Supported
Analog inputsYes
Supported
Impulse inputsYes
Supported
RS485 interfaceYes

Hardware extras

Fuel level sensor readingYes
Supported
Driver ID readingYes
Supported
External temperature sensor readingYes

Tracking features

Tracking modesContinuous
OdometerYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported

Self monitoring

GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII reader typeExternal
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes
Forced GNSS location update over SMSYes
On request
