cGuard Beacon

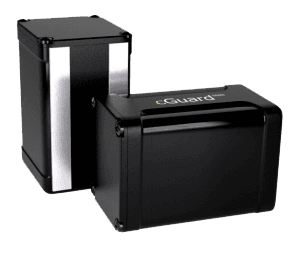

cGuard Beacon is a compact GLONASS/GPS asset tracker with a powerful internal battery and built-in GSM and GPS antennas. With the help of 14000 mAh internal battery, device can be used for various objects monitoring for a long time. cGuard Beacon is a small sized device with IP67 protection, which supports OTA firmware upgrade.

Show more

Features

  • Dual SIM. The main SIM card must be installed in the SIM2 slot.
  • Supports A-GPS, has built-in accelerometer.
  • The built-in battery capacity is 14000 mAh (up to 5 years of battery life in interval mode).
  • Can work in continuous tracking mode and in interval mode.

Location and tracking

  • GPS, GLONASS support
  • LBS support

Mobile networks

  • 850/900/1800/1900 MHz
  • 2G Network

Power supply

  • Build-in battery (14000 mAh)

Other features

  • Remote management
  • IP67 protection

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47729
Auto registrationYes

General information

PurposeAsset
Size72x49x43 mm (2.83x1.93x1.69 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Cellular network typeGSM Quad Band
Cellular network generation2G

Location information

GNSS signal levelYes
GPSYes
GLONASSYes
