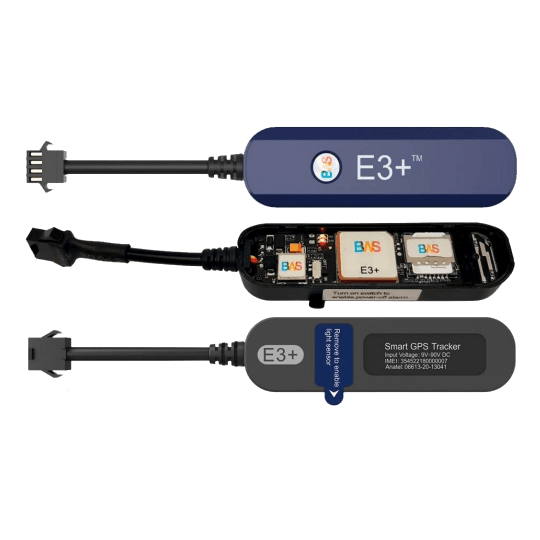

BWS E3+
More from BWS

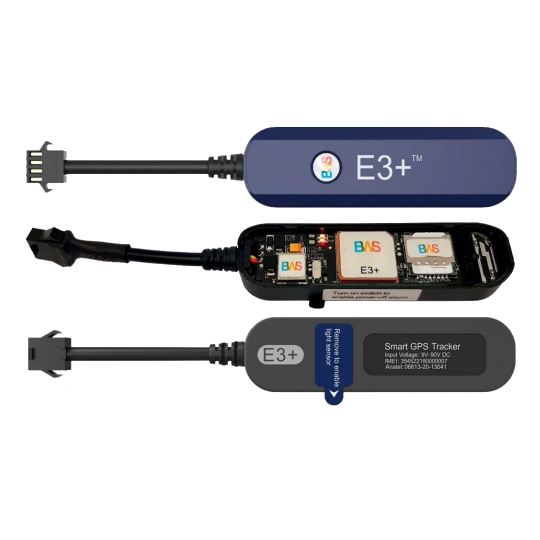

BWS E3+ 5pin is the cost-effective solution for real-time security and tracking. It is mainly used for tracking motor vehicles and machines with high added value due to its compact size and sensors of violations. Device supports sleep mode with low power consumption (~2 mA). BWS E3+ has a tamper detection feature which is based on the special light sensor.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 46987 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Size | 85x24x14 mm (3.35x0.94x0.55 in) |
| Waterproof class | IP66 |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| GPS | Yes |
| Assisted GPS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Motion sensor | Yes |
| Built-in battery | Yes |
| Battery capacity | 55 mAh |
Interfaces
| Discrete inputs | 2 |
| Number of outputs | 1 |
Input Fields
State Fields
Events monitoring
