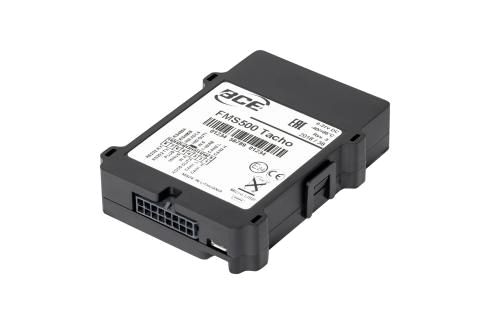

BCE FMS500 Tacho

FMS500 TACHO is a new generation fleet management device with full range of CAN-BUS data, remote tachograph data download and a wide variety of available accessories which make this device a powerful tool for satisfying the needs of the most demanding customer in fleet management field.

Show more

Location and tracking

  • GPS/GLONASS support
  • Continuous tracking mode
  • LBS support

Mobile networks

  • 2G/3G Network
  • GSM Quad Band

Power supply

  • Build-in battery 700mAh (optional)
  • External power supply (8 – 31V)

Inputs and outputs

  • 4 Digital input
  • 3 Analog inputs
  • 2 Outputs

Other features

  • 2 CAN lines operating simultaneously
  • Internal antennas
  • GSM jamming detection
  • Remote tachograph data download

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47727
Auto registrationYes

General information

PurposeVehicle
Size68x91x19 mm (2.68x3.58x0.75 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Cellular network typeGSM Quad Band
Cellular network generation2G

Location information

GNSS signal levelYes
LBSYes
GPSYes
GLONASSYes

Features

Remote outputs controlYes
OdometerYes
Motion sensorYes
Hardware keyYes

Interfaces

Discrete inputs5
Number of outputs2
Analog sensorYes
Frequency sensorYes
