Pretrace

Pretrace is dedicated to provide professional wireless machine-to-machine (M2M) devices and solutions in the field of GPS tracking and Internet of Things (IoT), our products are proved reliable and cost-effective, designed for: intelligent transportation system, fleet management, asset monitoring, personal security and pet tracking.

Pretrace also has rich experience on OEM/ODM service, provides flexible customized solutions for specialized requirements and quick service both on technical support & sales service.

Select GPS tracker model

Click on the model image to see detailed information and current list of supported features

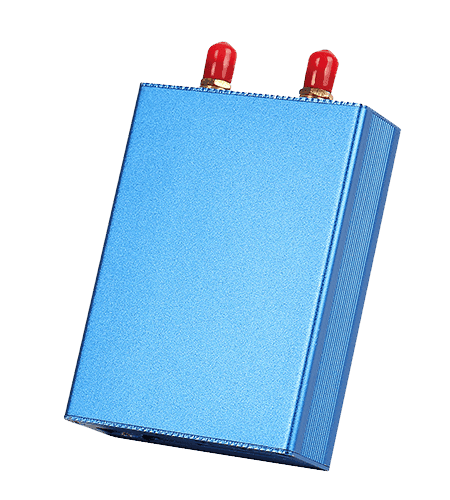

Pretrace TC55

Pretrace TC55 is designed for the most stable and economic GPS tracking for vehicles. With the optional accessories connecting, TC55 is the ultimate solution for fleet managers who in need of location tracking, emergency support, speeding report, anti-thief alarm, engine remote control, etc. It is widely used for the fleet management, M2M solution.

Packaging content:

  • TC55 tracking device
  • User manual

Features:

  • Remote Control for Engine or Door
  • High Accurate Stable Location
  • Built-in Vibration Sensor
  • Two Way Communications (Optional)
  • Quad band 850/900/1800/1900 MHz
  • Vehicle Battery Protection
  • Configuration via SMS and Computer
  • FOTA (Firmware Update via Wireless)

Applications:

  • Fleet management
  • Asset tracking
  • Insurance telematics

Specifications:

  • Operating voltage: 9v~36v
  • Working current: 50mA~150mA
  • Operating temperature: -20℃ to 60℃ (with battery) \ -30℃ to 70℃ (without battery)

GSM Module:

  • Dual/Quard Band GSM 850/900/1800/1900 MHz
  • GPRS multi-slot class 10/8
  • GPRS mobile station class B
  • Class 4 (2W @ 850/900 MHz)

GPS Module:

  • Accuracy: 5m~10m
  • Sensitivity: -162dBm

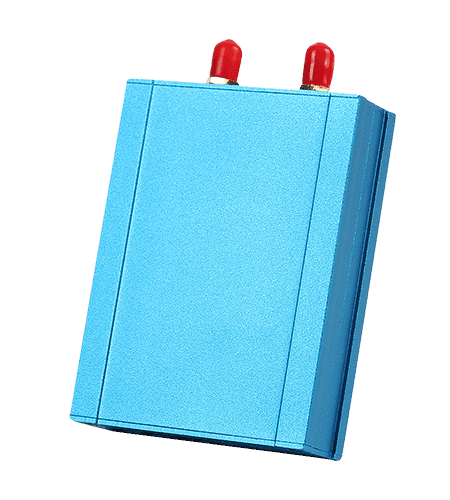

Pretrace TC56

Pretrace TC56 is a multifunctional GPS tracker for fleet management and M2M applications. It supports real time location, driving behavior analysis, temperature monitoring, two-ways communication, and other external equipment combination such as camera, RFID, fuel sensor, etc. TC56 will improve the efficiency of fleet management that increase the customers’ satisfaction.

Packaging content:

  • TC56 tracking device
  • User manual

Features:

  • Harsh Driving Behavior Events
  • Built-in 3 axis G-sensor
  • Accurate Real Time & LBS Tracking
  • Remote Engine/Door Control
  • Quad band 850/900/1800/1900 MHz
  • Temperature Monitoring Supported
  • RS232/RS485 Serial Interface
  • 1-Wire® Protocol Supported
  • GSM Jamming Detection
  • External RFID/Fuel Sensor Supported
  • Configuration via SMS and Computer

Applications:

  • Fleet management
  • Asset tracking
  • Insurance telematics

Specifications:

  • Operating voltage: 11V~36V
  • Working current: 50mA~150mA
  • Operating temperature: -30℃ to 70℃ (with battery) \ -40℃ to 80℃ (without battery)

GSM Module:

  • Dual/Quard Band GSM 850/900/1800/1900 MHz
  • GPRS multi-slot class 10/8
  • GPRS mobile station class B
  • Class 4 (2W @ 850/900 MHz)

GPS Module:

  • Accuracy: 5m
  • Sensitivity: -162dBm

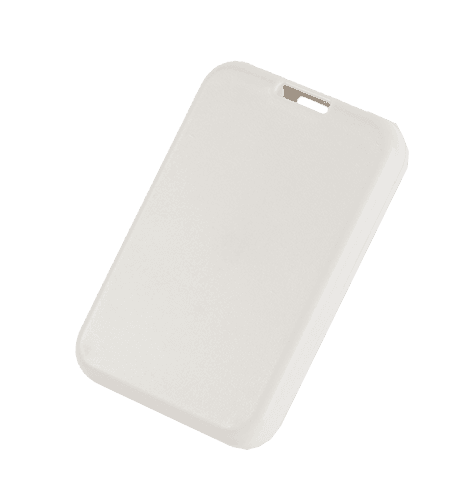

Pretrace TC80

Pretrace TC80 is optimized for assets tracking. It will operate autonomously for more than 300 days under optimal configuration, which is an ideal self-contained device for long term tracking deployments. Its built-in 3-axis G-sensor allows TC80 to detect asset movement and transmit an alert message. Its friendly thin size (13.6mm) design can be easily hang it up on the neck, use like an access card, or fix it on the objects, which is easy hidden.

Packaging content:

  • TC80 tracking device
  • User manual

Features:

  • Long Standby Time up to 300 Days
  • Easy installation
  • Internal 3-axis G-sensor for Motion Detection
  • Quad band 850/900/1800/1900 MHz
  • GPS and GSM Base Station Bi-Module Positioning
  • Low Power Consumption with Inbuilt Battery
  • Internal GSM/GPS Antennas for Easy Installation
  • Low Battery Alarm by SMS
  • OTA (Firmware Update via Wireless)
  • CE/RoHS Certified

Applications:

  • Asset tracking
  • Transportation tracking

Specifications:

  • Power Consumption: on average 15μA
  • Standby time: 5 minuted Reporting: More than 85 hrs

GSM Module:

  • Dual/Quard Band GSM 850/900/1800/1900 MHz
  • GPRS multi-slot class 10/8
  • GPRS mobile station class B
  • Class 4 (2W @ 850/900 MHz)

GPS Module:

  • Accuracy: <2.5m
  • Sensitivity: -165dBm

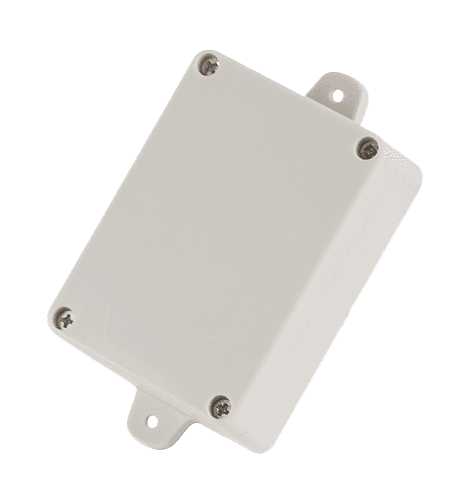

Pretrace TC85

Pretrace TC85 is designed for assets tracking, especially for container tracking. Four built-in batteries with 8800Mah, with super low power consumption, allow it to operate autonomously for more than 1000 days. Water resistant and anti-dust provides an optimal solution for protecting against temperature, dust, and water spray. It is an ideal self-contained device for long term tracking deployments.

Packaging content:

  • TC85 tracking device
  • User manual

Features:

  • Super Long Standby Time up to 1000 Days
  • Water Resistant, Anti-Dust, IP66
  • Easy installation
  • Internal 3-axis G-sensor for Motion Detection
  • Quad band 850/900/1800/1900 MHz
  • GPS and GSM Base Station Bi-Module Positioning
  • Low Power Consumption with Inbuilt Battery
  • Internal GSM/GPS Antennas for Easy Installation
  • Low Battery Alarm by SMS
  • OTA (Firmware Update via Wireless)
  • CE/RoHS Certified

Applications:

  • Asset tracking
  • Transportation tracking

Specifications:

  • Power Consumption: on average 15μA
  • Standby time: 10 minuted Reporting: More than 380 hrs

GSM Module:

  • Dual/Quard Band GSM 850/900/1800/1900 MHz
  • GPRS multi-slot class 10/8
  • GPRS mobile station class B
  • Class 4 (2W @ 850/900 MHz)

GPS Module:

  • Accuracy: <2.5m
  • Sensitivity: -165dBm

Looking for other Pretrace model? Suggest us to integrate it.
