BSJ KM-01/02
More from BSJ

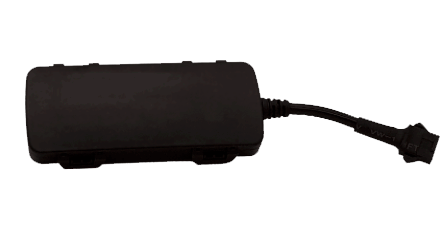

BSJ KM-01/02 GPS Tracker is a practical and easy-to-use GPS tracker with small size and accurate location specially designed for vehicle tracking. It combines GPS+LBS communication technology. With EPO technology, this device can easily achieve extreme fast positioning.
Features
- Car ACC on/off status;
- Oil checking;
- EPO located for assistance;
Location and tracking
BSJ KM-01/02 tracking is based on GPS signals only. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking). With EPO technology, this device can easily achieve extreme fast positioning.
Mobile networks
With Quad-band GSM module BSJ KM-01/02 can be operated all over the world.
Power supply
Device working current is 9-36V, recommended 12V and 24V. Tracker will damage if the current is
over this range. BSJ KM-01/02 also features a built-in backup battery. When fully charged it ensures about 0.5 hours of device operation (in normal conditions).
Remote management
BSJ KM-01/02 can be fully controlled over GPRS, including configuration of tracking modes and outputs control. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.
LED indication
BSJ KM-01/02 has LED indication for GPS and GSM status.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47694 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 160 g (5.64 oz.) |
Location information
| GNSS signal level | Yes |
| Forced GNSS location update over GPRS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
Interfaces
| Discrete inputs | 1 |
| Number of outputs | 1 |
