BSJ KM-01/02

More from BSJ

BSJ KM-01/02

BSJ KM-01/02

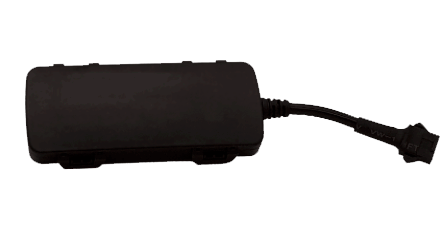

BSJ KM-01/02 GPS Tracker is a practical and easy-to-use GPS tracker with small size and accurate location specially designed for vehicle tracking. It combines GPS+LBS communication technology. With EPO technology, this device can easily achieve extreme fast positioning.

Show more

Features

  • Car ACC on/off status;
  • Oil checking;
  • EPO located for assistance;

Location and tracking

BSJ KM-01/02 tracking is based on GPS signals only. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking). With EPO technology, this device can easily achieve extreme fast positioning.

Mobile networks

With Quad-band GSM module BSJ KM-01/02 can be operated all over the world.

Power supply

Device working current is 9-36V, recommended 12V and 24V. Tracker will damage if the current is
over this range. BSJ KM-01/02 also features a built-in backup battery. When fully charged it ensures about 0.5 hours of device operation (in normal conditions).

Remote management

BSJ KM-01/02 can be fully controlled over GPRS, including configuration of tracking modes and outputs control. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED indication

BSJ KM-01/02 has LED indication for GPS and GSM status.


Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47694
Auto registrationYes

General information

PurposeVehicle
Size96x50x31.5 mm (3.78x1.97x1.24 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Cellular network typeGSM Quad Band
Cellular network generation2G

Location information

GNSS signal levelYes
GPSYes

Features

Remote outputs controlYes
OdometerYes

Interfaces

Discrete inputs1
Number of outputs1
