SimpliRoute

SimpliRoute is a data retransmission protocol that delivers vehicle tracking data for users to send information from their system to SimpliRoute.

Protocol Category: Enterprise compliance

Table of contents

1. What is SimpliRoute?

2. Technical information about SimpliRoute

3. Simpliroute Configuration

4. Setting up

5. Managing

6. Troubleshooting

What is SimpliRoute?

SimpliRoute is a data retransmission protocol that delivers vehicle location data and links it to the SimpliRoute order system. This allows users the ability to track orders that are managed within this software and that are synchronized with the vehicle positions obtained.

This data retransmission protocol is ideal for users looking to comply with SimpliRoute data forwarding to track vehicle positioning.

SimpliRoute general technical information

The SimpliRoute protocol utilizes the POST method to send JSON data over HTTP to the SimpliRoute servers for further data processing.

Data sent to SimpliRoute:

• Vehicle VIN

• License Plate

• Latitude

• Longitude

• Date/Time

• Speed

• Ignition

• GPS Provider - tax number specified in user information

SimpliRoute configuration

Setting up

Required Parameters

• Vehicle with an associated license plate and VIN according to the standards here.

To set up data forwarding for the SimpliRoute protocol:

1. Open the device settings from the main menu by pressing the gear icon on the bottom left of the screen.

2. Click the Data forwarding widget.

3. Click Protocols.

4. This will open a pop-up where you will input the required parameters by pressing the + button.

5. For the SimpliRoute protocol, input the following information:

Parameter	Explanation
Name	* Address: http://unigis2.unisolutions.com.ar/HUB/UNIGIS/MAPI/SOAP/GPS/Service.asmx * Port: 80
Protocol	Select the Simple Route protocol from the dropdown
Destination server address and port	* Address: https://k8k5azm77j.execute-api.sa-east-1.amazonaws.com/prod/gps * Port: 443

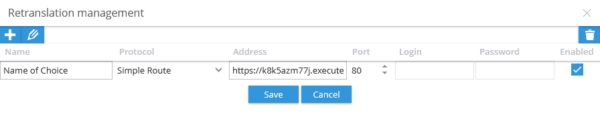

1. The Retranslation management screen should look like the following, with SimpliRoute login and password. Make sure the Enabled button is checked and click the Save button to complete the process.

1. Next, the retranslator will need to be linked to the device on the SimpliRoute side. To do so, select the button in the data forwarding widget. Select the retranslator to be connected, and click Link below. External ID is not needed for the SimpliRoute protocol.

2. Select Save once completed.

Managing

To edit or stop data from being forwarded, please refer to the following steps:

1. Click the Trash button to stop the data forwarding.

2. Acknowledge the change in the pop-up.

3. Click Protocols to change retranslator settings such as name, login information, or enabled status

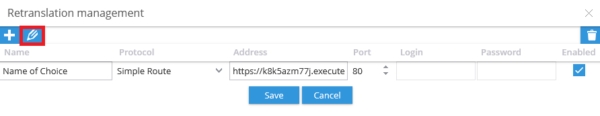

4. This will open the retranslator management window. Select the row to edit and either click the pencil in the top left or double-click the row in question to allow editing. Save any changes.

Troubleshooting

If data does not display on the 3rd-party SimpliRoute system, please make sure that:

• URL was entered correctly

• Retranslator is enabled

• Tracker on Navixy is associated with a vehicle on the platform with a valid license plate and VIN
