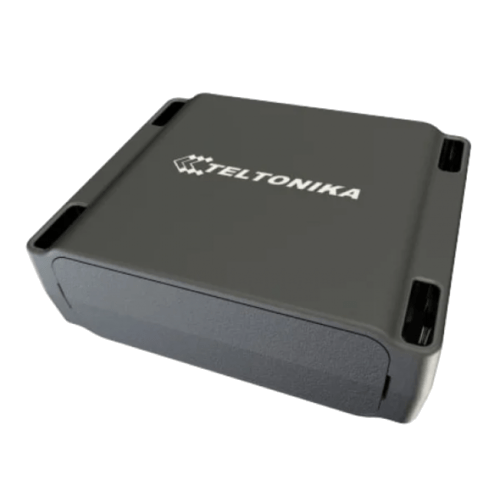

Teltonika TAT100

Teltonika TAT100 is compact autonomous device that will be perfect for tracking valuable goods. Small waterproof case allows for secure and easy installation. This device can be discretely mounted using magnets, glue or straps. Compact size and wide range of mounting options makes possible usage for various applications – from tools to container tracking. The

Show more

Teltonika TAT100 is compact autonomous device that will be perfect for tracking valuable goods.

Small waterproof case allows for secure and easy installation. This device can be discretely mounted using magnets, glue or straps.

Compact size and wide range of mounting options makes possible usage for various applications – from tools to container tracking.

The device uses low power BlueNRG-232 chipset, TM2500 module, internal GNSS, GSM
antennas and 2 low self-discharge Li-SOCl2 batteries. On interval tracking mode (one point a day) device will work for up to a year uninterrupted. This makes it suitable for long-range deployments.

Device also supports several configuration methods. USB slot allows connection to PC or laptop for configuration via Teltonika’s software. Remote configuration and firmware upgrades are also possible.

Location and tracking

  • GPS, GLONASS, Beidou, Galileo
  • Continuous tracking mode
  • Interval tracking mode (by time)

Mobile networks

  • Frequency bands @ 2G (GSM): 850/900/1800/1900 MHz

Power supply

  • Build-in battery 2x AA types

Protection & security

  • Ip67 waterproof case
  • Allows password configuration
  • Authorized GSM numbers list
  • Login/password configuration for SMS

Other features

  • Magnet and strap mounting options
  • Bluetooth 4.0
  • Accelerometer
  • Operating temperatures from -60°С to +85°С
  • Built-in 128MB memory

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776

General information

PurposeAsset
InstallationNot required, DIY

Housing

Size78x63x28 mm (3.07x2.48x1.1 in)
Waterproof classIP67

GNSS Location

GLONASSYes
GalileoYes
BeidouYes
Assisted GPSYes

Hardware features

Built-in batteryYes
Supported
AccelerometerYes

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
Supported
GNSS signal levelYes
Supported
Internal battery levelYes
Supported

Remote management

Remote device configurationYes (over GPRS)
Supported
Forced LBS location update over GPRSYes
Supported
Forced GNSS location update over SMSYes
Supported
