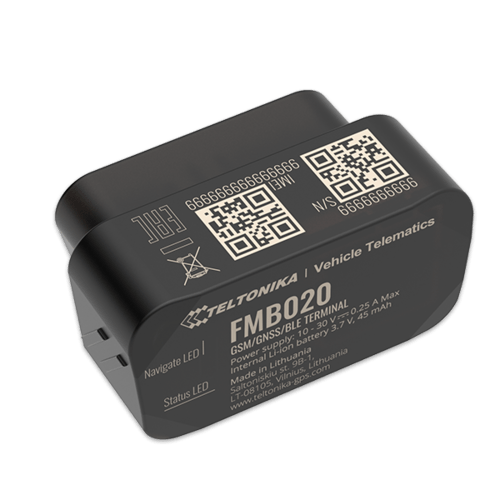

Teltonika FMB020

FMB020 is an ultra-small OBDII plug and track device with GNSS, GSM and Bluetooth connectivity for a true connected car application. It is a perfect tracker for a wide range of use cases – including fleet management of light commercial vehicles, driver log-book, insurance telematics (UBI), car rental & leasing and more.

FMB020 device supports crash detection functionality that allows the user to be notified when a car crash happens. By using the accelerometer data received during the crash, it is possible to visualize the angle and measure the force with which the vehicle was hit. This could prove to be useful in Insurance Telematics solutions. The device supports various Bluetooth Low energy sensors, beacons, hands-free headsets, firmware and configuration updates via Bluetooth

Show more

Location and tracking

  • GPS, GLONASS, GALILEO, BEIDOU
  • Interval and continuous tracking modes
  • LBS

Mobile networks

  • Quad band 850 / 900 / 1800 / 1900 MHz
  • 2G / 3G

Power supply

  • Build-in 3.7 V 45 mAh battery
  • External power supply 10 – 30 V DC

Other features

  • Assisted GPS
  • IP41 protection
  • Green driving detection
  • Car crash detection

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776

General information

PurposeVehicle
InstallationNot required

Housing

Tamanho52.6x29.1x26 mm (2.07x1.15x1.02 in)
À prova d\'águaIP41

GNSS Location

Antena interna (GNSS)Yes
GPSYes
GLONASSYes
GalileoYes
BeidouYes
GPS assistidoYes

Connectivity

Tipo de rede celularGSM Quad Band
Antena interna (Conexão)Yes
Geração de rede celular2G

Interfaces

ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported

Hardware features

Capacidade da bateria45 mAh
Bateria integradaYes

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
Car crashYes
Supported

Self monitoring

Network signal levelYes
Supported
ID do operadorYes
Supported
Network roaming statusYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Forced GNSS location update over SMSYes
Supported
