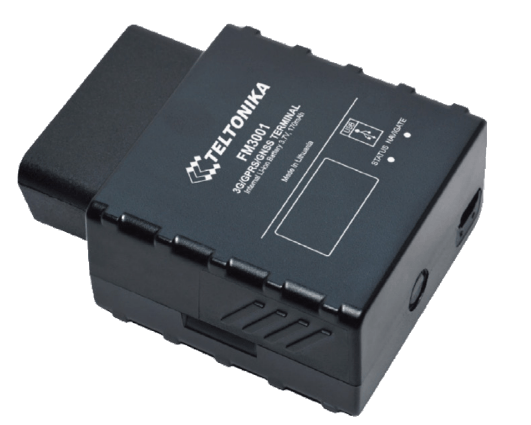

Teltonika FM3001

Teltonika FM3001 is EASY OBDII Plug and Play tracker with GNSS, 3G and Bluetooth connectivity. FM3001 is perfectly suitable for light vehicle tracking in applications like courier delivery service, car rental & leasing, insurance telematics and many other where simple integration is a must. FM3001 has additional feature – reading OBDII data from on-board computer. Device supports hands free,firmware and configuration update via Bluetooth. 3G feature makes this device usable worldwide.

Show more

Location and tracking

  • GPS, GLONASS Support
  • Continuous and interval tracking modes
  • LBS Support
  • AGPS

Mobile networks

  • 850 / 900 / 1700 / 1800 / 1900 / 2100 MHz
  • 2G and 3G network

Power supply

  • Build-in battery (170 mAh)
  • External power supply (10 – 30 V )

Other features

  • OBD II device
  • Local and remote management
  • Sleep modes
  • Green Driving
  • Supported up to 4 BLE temperature, humidity or fuel sensors.

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776

General information

PurposeVehicle
InstallationDIY

Housing

Weight63 g (2.22 oz.)
Size50.7x49.6x25 mm (2x1.95x0.98 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes
Assisted GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation3G

Interfaces

ACC/Ignition inputYes
Supported

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Forced GNSS location update over SMSYes
Supported
