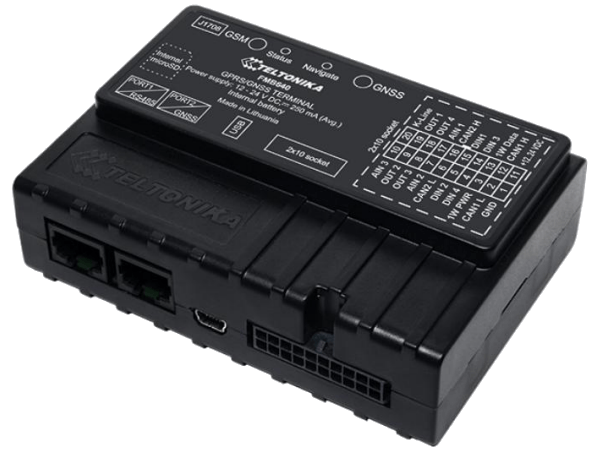

Teltonika FMB640

FMB640 is a professional tracker with GPS and GSM connectivity, which is able to determine the object’s coordinates and transfer them via the GSM network. This device is perfectly suitable for applications, which need location acquirement of remote objects. It is important to mention that FMB640 has additional inputs and outputs, which let you control and monitor other devices on remote objects. FMB640 also has a USB port for device status log output and for saving configurations.

Show more

Location and tracking

  • GPS, GLONASS Support
  • Continuous and interval tracking modes
  • LBS Support

Mobile networks

  • 850 / 900 / 1800 / 1900 MHz
  • 2G Network

Power supply

  • Build-in 550 mAh Ni-Mh, 8,4 V battery
  • External power supply (10 – 30 V DC)

Inputs and outputs

  • 4 Discrete inputs
  • 4 Analog inputs
  • 4 Digital outputs

Other features

  • 1-Wire
  • Local and remote management
  • LVCAN
  • RS232
  • RS485
  • Internal memory

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776

General information

PurposeVehicle
InstallationProfessional

Housing

Weight197 g (6.95 oz.)
Size104.1x76.8x31.5 mm (4.1x3.02x1.24 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of RS232 interfaces2
Number of outputs4
Number of inputs (all types)2
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
RS232 interfaceYes
RS485 interfaceYes
1-Wire interfaceYes

Hardware extras

Fuel level sensor readingYes
Supported
Driver ID readingYes
Supported
External temperature sensor readingYes
CameraYes
On request

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Mobile signal jammingYes
Supported

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
Supported
Network roaming statusYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII reader typeExternal
Supported
CAN/OBDII parametersSpeed, fuel level, fuel consumption, engine RPM, engine load

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS), Yes
Supported
Forced GNSS location update over SMSYes
Supported
