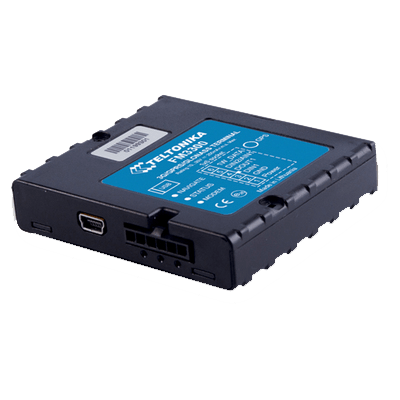

Teltonika FM3300

Teltonika FM3300 is a basic GPS tracker for vehicles that supports 3G/GSM networks. It is a small device with simple installation designed for a wide range of common applications.

Show more

Teltonika FM3300 is a compact GPS tracking device for vehicles with support of 3G/GSM networks. This is a budget tracker which works with GPS and GLONASS signals. It is easy to install and can be used for fleets of any sizes (when no specific requirements such as digital fuel level sensor or CANbus reading are needed) as well as for personal needs.

Package contents

Teltonika FM3300 device is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation. The package contains:

  • FM3300 device;
  • Input and output power supply cable with a 1×6 connection pins;
  • GNSS antenna;
  • GSM/3G antenna;
  • USB cable;
  • A card, which contains URL to download FM3300 device drivers and Configurator software.

Location and tracking

FM3300 model is embedded with chip that supports both GPS and GLONASS. It doesn’t support Assisted GPS (A-GPS) technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

The tracking mode is flexible configured: by moving every 100m, and every 60 sec, and on turning on 30 degrees by default. When there is no movement (detected by “Ignition” status), tracker sends data every 180 seconds.

Mobile networks

FM3300 can work with GSM 2G and 3G networks. 3G/GSM module makes this device usable worldwide, as there are countries which have only 3G network. User can choose if device will work only in GSM network, or it will prefer 3G network and switch to GSM only then 3G is absent.

Interfaces

FM3300 model features such interfaces as

  • USB port;
  • 2 digital inputs;
  • 1 analog input;
  • 2 open collector digital outputs;
  • 1Wire® temperature sensor;
  • 1Wire® iButton;

*Depends on FM3300 PINOUT configuration

Power supply

FM3300 uses and voltage range 10-30V, which makes possible to install it both on cars and trucks. Device also features an optional built-in rechargeable backup battery. When fully charged it ensures about 1 hour of device operation (in normal conditions).

“Ignition” status

There is a virtual “Ignition” flag in FM3300 which is determined by either:

    • External power voltage – when the power level falls below a certain configured level (by default 13V), the “Ignition” is considered to be OFF, otherwise – ON.
    • Digital Input #1 – if there is positive signal on DIN #1 of the socket, the “Ignition” flag is ON.
  • Acceleration sensor – when the built-in accelerometer detects movement, the “Ignition” flag is ON.

“Stop/Movement” mode

Teltonika FM3300 determines whether vehicle is on move or stopped by one of three methods (configurable by user):

MethodMovingStopped
by Board VoltageIf board voltage exceeds certain level (configurable, 13V by default)If board voltage is lower than a certain level
by AccelerationInternal accelerometer detects movementInternal accelerometer does not detect movement
by GNSSGNSS is fixed and speed is above 5 km/hGNSS is fixed and speed is below 5 km/h  or GNSS is not fixed

Two sleep modes

FM3300 is able to go to Sleep mode after configurable Sleep timeout. This timeout (defined period) starts counting when device is in STOP mode. After timeout is reached and all conditions for sleep mode are met, device goes to normal sleep or deep sleep mode:

  • Normal sleep mode. While in normal sleep mode, FM3300 turns GNSS module OFF, but keeps GSM module ON. The device is not making any new periodic GPS records, just monitoring the events with the last known coordinates and sends them to tracking server. As a result power consumption decreases allowing saving vehicle’s battery (below 2 mA).

FM3300 exists normal sleep mode when “Movement” mode detected or “Ignition” switches on.

  • Deep sleep mode. While in deep sleep mode, FM3300 sets both GNSS receiver and GSM/GPRS module to OFF state, thus making impossible to wake up the device remotely. Battery consumption drops below 2 mA.

FM3300 exits deep sleep mode if at least one of following conditions is true:

    • “Movement” mode is detected
    • “Ignition” is turned on
    • USB cable is connected

Harsh driving behaviour

FM3300 features “Green Driving Scenario” that helps to inspect driver about harsh driving. Scenario continuously monitors: accelerating force, braking force and cornering angles. When these parameters exceed configured thresholds, Green Driving event is generated and sent to server

To prevent generating false events, harsh acceleration and harsh braking is monitored only when following conditions are fulfilled:

  • “Ignition” flag (see above) is turned on
  • Vehicle speed is equal or higher than 10 km/h

Harsh cornering is monitored only when following conditions are fulfilled:

  • “Ignition” flag (see above) is turned on
  • Vehicle speed is equal or higher than 30km/h

Local and remote management

Teltonika FM3300 tracker can’t be controlled over GPRS, though it supports firmware updating via GPRS (FOTA). However, there is a wide list of SMS commands in a ASCII  format, on which device always replies back. In particular, Server address and port, APN settings can be applied remotely with SMS. To decrease the amount of SMS required for configuration SMS in binary format can be also used.

You can also configure FM3300 from a PC using proprietary software (Teltonika Configurator) and standard USB-cable which is included into package.

LED Indication

FM3300 has three status LEDs:

  • Modem LED: indicates GSM/GPRS mode
  • Status LED: indicates system Power
  • Navigation LED: indicates GPS reception

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776
Integrated on15/11/2015

General information

PurposeVehicle
InstallationProfessional

Housing

Weight80 g (2.82 oz.)
Size66x60x14 mm (2.6x2.36x0.55 in)

GNSS Location

Internal antenna (GNSS)No
External antenna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
External antenna (Connection)No
Cellular network generation3G, 2G

Interfaces

Number of outputs2
Number of inputs (all types)3
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
1-Wire interfaceYes
OutputsYes
Supported

Hardware features

Battery capacity170 mAh
Built-in batteryYes
Emergency buttonNo

Hardware extras

Fuel level sensor readingYes
Supported
Driver ID readingYes
Supported
External temperature sensor readingYes
Supported

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported
Smart power consumptionYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
Input changeYes
Supported
External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
GNSS satellites fixedYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over SMS), Yes
Supported
Remote outputs controlYes (over SMS), Yes
Supported
Firmware update OTAYes

Certification

CEYes
FCCYes
