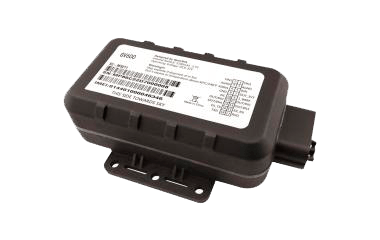

Queclink GV648W

Queclink GV600 Series are ruggedized waterproof GPS trackers specially designed for use in trailer, tanker, reefer and flatbed truck tracking. They include up to a 90-day standby time using an internal rechargeable 5200 mAh battery pack, and are able to dual external power sources for redundancy. The built-in GPS receiver has best in class sensitivity and fast time to first fix.

Show more

Multiple I/O interfaces are available for monitoring or controlling external devices, including a 1-wire interface for monitoring temperature and multiple serial ports. Vehicle trackers within the series support Quad Band 2G GSM/GPRS, multiple 3G variants with Global or Regional Applicability, LTE CAT-M1 (eMTC), LTE CAT-M2 (NBIoT) on many bands supporting North American and European Cellular Operators.

Features:
  • Ruggedized, designed for use in harsh heavy trucking environments, sealed against common fuel oils and other hazardous chemicals
  • Multiple I/O interfaces for monitoring and controlling including composite inputs, ignition detection and serial port options
  • 1-wire interface temperature sensors monitoring
  • Low power consumption, 90-day long standby time with internal battery pack
  • Waterproof IP67 compliant

Location and tracking

  • Continuous and interval tracking modes
  • LBS support

Mobile networks

Queclink GV648W could be used worldwide, as it supports GSM/UMTS/HSPA technologies

  • 850/900/1800/1900 MHz and UMTS/HSPA: 850(B5)/850(B6)/900(B8)/1900(B2)/2100(B1)

Power supply

  • External power supply (8-32 V)
  • Internal 5200 mAh battery

Inputs and outputs

  • 1 Digital input
  • 1 Analog input
  • 1-wire temperature sensor support
  • 1 Digital output
  • 4 digital inputsoutputs (four negative trigger inputs for normal use, or four open drain outputs 150mA max drive current)

Other features

  • Local and remote management

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47764

General information

PurposeVehicle
InstallationProfessional

Housing

Weight189 g (6.67 oz.)
Size135x62x38 mm (5.31x2.44x1.5 in)
Waterproof classIP67

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeHPSA/UMTS 850/900/1900/2100, GSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation3G, 2G

Interfaces

Number of RS232 interfaces1
Number of outputs4
Number of inputs (all types)6
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
RS232 interfaceYes
Supported
1-Wire interfaceYes
Supported
OutputsYes
Supported

Hardware features

Battery capacity5200 mAh
Built-in batteryYes
Supported

Hardware extras

Fuel level sensor readingYes
Supported
Emergency buttonYes
Supported
External temperature sensor readingYes
Supported

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported
Car crashYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS)
Supported
Forced LBS location update over GPRSYes
Supported
Forced GNSS location update over SMSYes
Supported

Certification

CEYes
FCCYes
