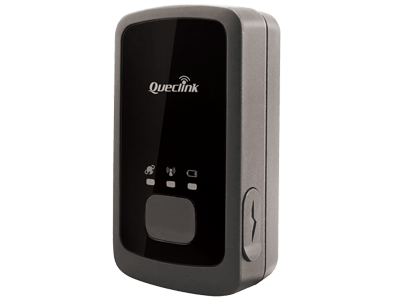

Queclink GL300M

Queclink GL300M is a compact and durable GPS tracker which can be used for variety purposes, but mainly as a personal locator, for cargo tracking and car tracking when it is put inside the cabin. Waterproof casing and optional large battery kit extends the range of possible applications even further.

Show more

Location and tracking

  • GPS, GLONASS
  • Coninuous and interval
  • LBS

Mobile networks

  • GSM Quad Band
  • 2G / 3G

Power supply

  • Build-in battery Li-pol 1300 mAh

Inputs

Two digital inputs

  • One positive trigger for ignition detection
  • One negative trigger input for normal use

Other features

  • IP5X Waterproof
  • Local and remote management
  • LED indication
  • Emergency button

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47764

General information

PurposeVehicle
InstallationNot required

Housing

Weight60 g (2.12 oz.)
Size68.5x38.5x23.5 mm (2.7x1.52x0.93 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Discrete inputsYes
Supported

Hardware features

Emergency buttonYes
Supported

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported

Events monitoring

External power cut offYes
Supported

Self monitoring

GNSS signal levelYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Forced LBS location update over GPRSYes
Supported
Forced GNSS location update over SMSYes
Supported
