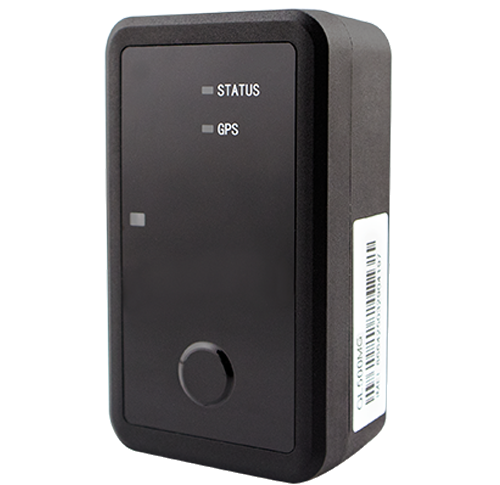

Queclink GL500MG

The GL500MG is an easy-to-deploy asset tracker built on Queclink’s innovative power management technology. It lasts for up to seven years and features one of the longest battery lives among devices of its size in the market. The built-in light sensors make the product sensitive to tamper attempts and its waterproof design allows it to be used in harsh environments. With internal temperature and light sensors, the product is ideal for a wide range of environmental monitoring applications such as cold chain logistics, warehouse management, cargo trucking, high-value static asset monitoring and more. The GL500MG supports several mounting alternatives which use unique clip on design to securely attach the device to any asset.

Show more

Location and tracking

  • GNSS type: u-blox All-in-One GNSS receiver
  • Interval and continuous tracking mode
  • Autonomous sensitivity: -147 dBm
  • Hot start: -156 dBm
  • Reacquisition: -160 dBm
  • Tracking: -162 dBm

Mobile networks

  • Cat M1/Cat NB1 LTE-FDD: B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/ B19/ B20/ B25/ B28
  • EGPRS: 850 / 900 / 1800 / 1900 MHz

Power supply

  • 3 CR123A lithium batteries, 1400 mAh

Protection

  • IP67
  • Operating Temperature: -20℃ ~ +60℃
  • Electrostatic discharge protection on USB, SIM card slot and 1-Wire data line
  • Overcurrent protection on a 1-Wire power line and digital outputs
  • Overvoltage protection on analog inputs
  • Charging protection

Sensors

  • Internal Temperature Sensor: Accuracy: ±1℃
  • Internal Light Sensor for tamper detection
  • Internal Motor for vibration feedback after successful operation of function button

Other features

  • Internal buffer
  • Magnetic mounting case
  • Internal LTE antenna
  • Internal GNSS antenna
  • LED indicators: GNSS, PWR

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47764

General information

PurposeAsset
InstallationNot required

Housing

Weight140 g (4.94 oz.)
Size87x51x30 mm (3.43x2.01x1.18 in)
Waterproof classIP67

GNSS Location

Assisted GPSYes

Hardware features

Battery capacity1400 mAh
Built-in batteryYes
Supported
Internal temperature sensorYes
Supported

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported

Events monitoring

Battery lowYes
Supported
DetachYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
Internal battery levelYes
Supported

Remote management

Remote device configurationYes (over GPRS)
Supported
Forced LBS location update over GPRSYes
On request
Forced GNSS location update over SMSYes
Supported
