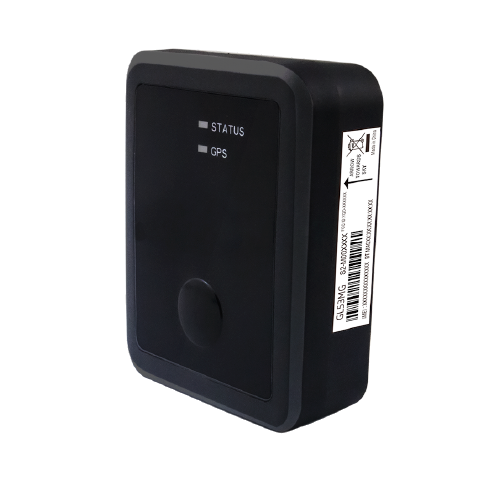

Queclink GL53MG

The GL53MG is the upgraded LTE Cat M1/NB2 version of GL50MG. It integrates the latest low-power wide area network standards and covers a broader area, making it more flexible to deploy. Adding a programmable button makes it ideal for applications requiring rapid emergency alert or checking status of device. Its built-in BLE allows connectivity to diverse wireless accessories. Micro-sized waterproof design allows it to be used in harsh environments. The GL53MG is an ideal product for SVR application requiring LTE technology. In addition, it is also used for a wide range of applications including auto financing, asset monitoring, car rental and leasing and more.

Mostrar mais

Location and tracking

  • Power saving mode for long standby time
  • Continuous mode for emergency tracking
  • All-in-One GNSS receiver
  • Autonomous sensitivity -148 dBm
  • Hot start: -163 dBm
  • Tracking: -165 dBm

Mobile networks

  • LTE Cat M1/NB2
    Cat M1:
    LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B27/B28/B66/B85

  • Cat NB2:
    LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85

EGPRS Specifications

  • EGPRS 850 / 900 / 1800 / 1900 MHz
  • EDGE 296 Kbps (DL) / 236.8 Kbps (UL)
  • GPRS 107 Kbps (DL) / 85.6 Kbps (UL)

Power supply

  • Lithium manganese dioxide battery, 2400mAh
  • External power supply 9 – 32 V DC

Other features

  • Up to 10,000 buffer messages
  • Motion detection based on internal 3-axis accelerometer
  • Alarm when internal battery is low
  • Support BLE 5.1 protocol
  • Internal GNSS antenna
  • Internal GSM antenna
  • 2 LED indicators: Status, GNSS
  • Wake up at preset intervals
  • Intelligent adjustment of reporting frequency
  • Operating Temperature: -20℃ ~ +60℃
  • Power button used for power on/off, emergency alert and working status checking

Conexão do servidor

Servidor da UEtracker.navixy.com (52.57.1.136)
Servidor dos EUAtracker.us.navixy.com (13.52.37.2)
Porta do servidor47764
Auto cadastroSim

Informação geral

PropósitoDispositivo

Conectividade

Nível do sinalSim
ID do operadorSim

Informações de localização

Nível de sinal GNSSSim
LBSSim
Localização forçada pelo GNSS em preferência ao GPRSSim
Localização GNSS forçada em preferência ao SMSSim
Localização forçada pelo LBS em preferência ao GPRSSim

Caracteristicas

AcelerômetroSim
