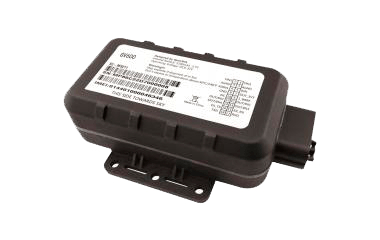

Queclink GV628W

Queclink GV600 Series are ruggedized waterproof GPS trackers specially designed for use in trailer, tanker, reefer and flatbed truck tracking. They include up to a 90-day standby time using an internal rechargeable 5200 mAh battery pack, and are able to dual external power sources for redundancy. The built-in GPS receiver has best in class sensitivity and fast time to first fix.

Mostrar mais

Multiple I/O interfaces are available for monitoring or controlling external devices, including a 1-wire interface for monitoring temperature and multiple serial ports. Vehicle trackers within the series support Quad Band 2G GSM/GPRS, multiple 3G variants with Global or Regional Applicability, LTE CAT-M1 (eMTC), LTE CAT-M2 (NBIoT) on many bands supporting North American and European Cellular Operators.

Features:
  • Ruggedized, designed for use in harsh heavy trucking environments, sealed against common fuel oils and other hazardous chemicals
  • Multiple I/O interfaces for monitoring and controlling including composite inputs, ignition detection and serial port options
  • 1-wire interface temperature sensors monitoring
  • Low power consumption, 90-day long standby time with internal battery pack
  • Waterproof IP67 compliant

Location and tracking

  • Continuous and interval tracking modes
  • LBS support

Mobile networks

Queclink GV628W could be used only in North America, as it supports GSM/UMTS/HSPA technologies

  • 850/1900 MHz and UMTS/HSPA: 850(B5)/1900(B2)

Power supply

  • External power supply (8-32 V)
  • Internal 5200 mAh battery

Inputs and outputs

  • 1 Digital input
  • 1 Analog input
  • 1-wire temperature sensor support
  • 1 Digital output
  • 4 digital inputsoutputs (four negative trigger inputs for normal use, or four open drain outputs 150mA max drive current)

Other features

  • Local and remote management

Conexão do servidor

Servidor da UEtracker.navixy.com (52.57.1.136)
Servidor dos EUAtracker.us.navixy.com (13.52.37.2)
Porta do servidor47764
Auto cadastroSim

Informação geral

PropósitoVeículo
Peso189 g (6.67 oz.)

Conectividade

Nível do sinalSim
ID do operadorSim

Informações de localização

Nível de sinal GNSSSim
LBSSim
Localização forçada pelo GNSS em preferência ao GPRSSim
Localização GNSS forçada em preferência ao SMSSim
Localização forçada pelo LBS em preferência ao GPRSSim

Caracteristicas

Controle remoto das saídasSim
HodômetroSim
AcelerômetroSim

Interfaces

Entradas digitais5
Número de saídas4
Sensor analógicoSim
