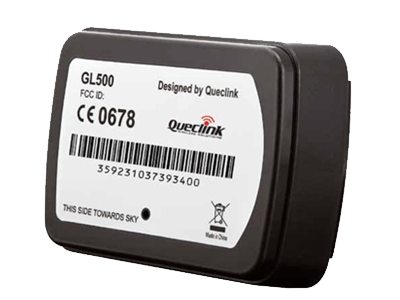

Queclink GL500

Queclink GL500 is a very usefull model with a wide range of options. The intuitive configuration allows to preset the device in sleep or wake-up mode when it would be necessary from customer's mobile phone. After sending the information about current location the tracker can go to a dormant status automatically.

Show more

Queclink GL500 is very simple to control by the customer via GPRS and SMS commands, but requires a professional assistance before the first usage.

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47764
Integrated on12/7/2012

General information

PurposePersonal, Pet, Vehicle, Asset
InstallationProfessional

Housing

Weight65 g (2.29 oz.)
Size80x58x26.8 mm (3.15x2.28x1.06 in)

GNSS Location

Internal antenna (GNSS)Yes
External antenna (GNSS)No
GPSYes
GLONASSYes
GalileoYes
BeidouYes
Assisted GPSYes
Chipsetu-blox

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
External antenna (Connection)No
Cellular network generation2G

Interfaces

Number of inputs (all types)1

Hardware features

Battery capacity3000 mAh
Built-in batteryYes
AccelerometerYes
Additional information about Hardware featuresNormal CR123A type batteries are used
Internal temperature sensorYes
Supported

Hardware extras

Driver ID readingYes
Supported

Tracking features

Location by Cell IDYes
Supported
Smart power consumptionYes
Supported
Additional information about Tracking featuresSince the device is powered with normal batteies (not rechargeable), it's recommended to use interval tracking mode (not continuous) mainly.

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
GNSS satellites fixedYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Forced LBS location update over GPRSYes
Supported
Forced GNSS location update over SMSYes
Supported
