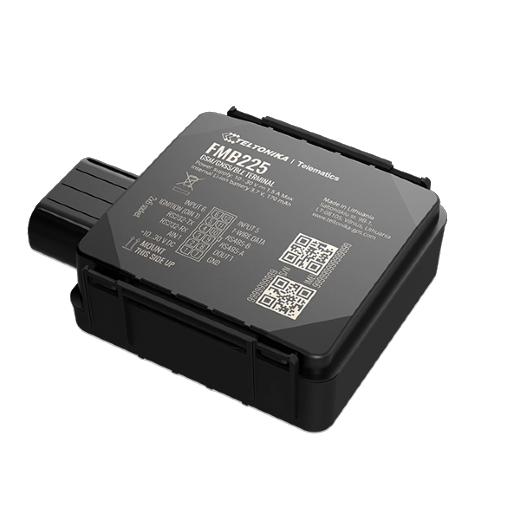

Teltonika FMB225

FMB225 is a water and dust resistant tracker with internal high gain GSM and GNSS antennas, which is able to collect device coordinates and other useful data and transfer them via GSM network to server. FMB225 is developed on the existing Teltonika platform, therefore it keeps all of the functionalities from FMB125 with an additional

Mostrar más

FMB225 is a water and dust resistant tracker with internal high gain GSM and GNSS antennas, which is able to collect device coordinates and other useful data and transfer them via GSM network to server.

FMB225 is developed on the existing Teltonika platform, therefore it keeps all of the functionalities from FMB125 with an additional IP67 resistance to dust and water.

This tracker is dust tight and protected against the effects of a temporary immersion in water. It can be mounted inside and outside of a vehicle without worries that high pressured water, mud or dusty environment will impact its operation or performance quality. This is particularly relevant for the industries where harsh conditions exist, such as agriculture, construction and mining, and more.

Device is designed for communication with various third party RS232 or RS485 devices, like digital fuel sensors (LLS), Garmin navigation device, RFID reader and much more. The Dual-SIM feature provides a backup communication channel where the coverage of a singular operator is not sufficient. FMB225 can perform tasks on remote objects, such as monitoring engine status, controlling truck’s door etc.

It’s just a small part of existing functionality but it allows to make FMB225 even better.


Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor47776
Auto registro

Información general

FinalidadVehículo
Tamaño70.5 x 67.0 x 25.6 mm (2.78x2.64x1.01 in)
ImpermeableIP67
Antena interna (GNSS)
Antena interna (Conexión)

Conectividad

Estado de roaming
Nivel de señal
Tipo de la red del celularQuad-band 850/900/1800/1900
Generación de red celular2G
ID del operador

Información de ubicación

Nivel de señal GNSS
LBS
Localización forzada por GNSS preferente a GPRS
Localización forzada de GNSS preferente a SMS
GPS
GLONASS
Galileo
Beidou
GPS asistido

Características

Control remoto de las salidas
Odómetro
Acelerómetro
Lectura del identificador del conductor
Capacidad de batería170 mAh

Interfaces

Entradas digitales2
Número de salidas1
Sensor analógico
Sensor de impulsos
Sensor de frecuencia
Interfaz RS485
Interfaz 1-Wire
Tipo de lector CAN/OBDIIExterno
