Teltonika FM1000ST

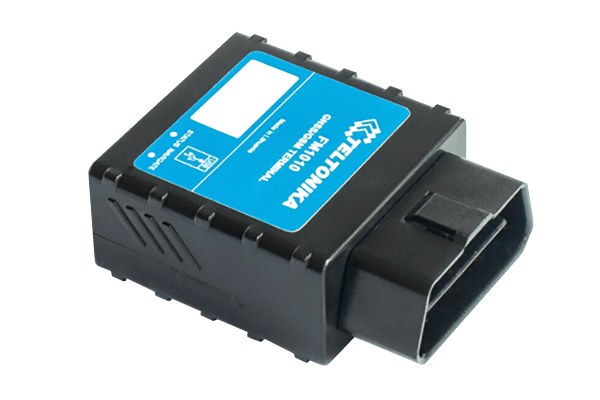

Teltonika FM1000ST is a new name for the Teltonika FM1000, a vehicle telematics unit that easily plugs into a vehicle’s OBDII port of almost any car. It can read telemetry data from vehicle diagnostic system, and controls ignition status in various ways and detects harsh driving. The possible applications for FM1000 are Fleet and mobile workforce management, Usage Based Insurance, Car Rental, and Teenage driver tracking.

Mostrar más

Package contents

When you open the cardboard box, you’ll see just Teltonika FM1000ST device, supplied with a USB cable. If you use the tracking software that automatically configures the device, you’ll hardly need that cable. Otherwise you can use it for manual configuration from a PC, or for firmware upgrade.

Most commonly Teltonika FM1000ST comes with built-in backup battery (Li-ion, 170 mAh), that’s already installed. However, if you are not sure, you’d rather check that yourself – you’ll need to open the casing.

Optional accessories you might require for special cases:

  • OBDII extension cable
  • OBDII adaptor

Location and tracking

FM1000ST model is embedded with GPS chip and also it has the support of GLONASS. It doesn’t support Assisted GPS (A-GPS) technology, that’s why acquiring of the signal might take some more time, but normally it does not exceed a couple of minutes. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

The tracking mode can be flexible configured: by distance, time and turning. We’d recommend to use the following parameters: distance 100m, time 60 sec, and on turning on 30 degrees. When there is no movement (detected by “Ignition” status), tracker sends data in a specified time interval (i.e. 180 seconds). That’s quite convenient and useful for power saving.

OBDII data reading

Teltonika FM1000ST reads such data from vehicle’s diagnostic system, as dashboard speed, engine RPM, coolant temperature, MIL, DTC codes, etc. And it gets power supply from OBDII port and can measure up the board voltage.

Mobile networks

Standard quad-band GSM module allows to use FM1000ST in most of the regions covered with 2G GSM netwrorks. The slot for a SIM card (normal size) is located on the butt-end of the device. There is no any sensor for SIM card slot opening.

Power supply

FM1000ST gets the power from OBD II Connector Type A. The voltage level must be in the range of 10-16V. Device also features a built-in rechargeable Li-ion backup battery with the capacity of 170mAh. When fully charged it ensures about one hour of device operation in normal conditions.

“Ignition” status

There is a virtual “Ignition” flag in FM1000ST, which is determined by either:

    • External power voltage – when the power level falls below a certain configured level (by default 10V), the “Ignition” is considered to be OFF, otherwise – ON.
    • Digital Input #1 – if there is positive signal on PIN #1 of the socket, the “Ignition” flag is ON. Important notice: on some cars it does not work.
    • Acceleration sensor – when the built-in accelerometer detects movement, the “Ignition” flag is ON.

“Stop/Movement” mode

Teltonika FM1000ST determines whether vehicle is on move or stopped by one of three methods (configurable by user):

MethodMovingStopped
by Board VoltageIf board voltage is above certain level (configurable, 10V by default)If board voltage is lower than a certain level
by AccelerationInternal accelerometer detects movementInternal accelerometer does not detect movement
by GNSSGNSS is fixed and speed is above 5 km/hGNSS is fixed and speed is below 5 km/h  or GNSS is not fixed

Two sleep modes

FM1000ST is able to go to Sleep mode after configurable Sleep timeout. This timeout (defined period) starts counting when device is in STOP mode. After timeout is reached and all conditions for sleep mode are met, device goes to normal sleep or deep sleep mode:

  • Normal sleep mode. While in normal sleep mode, FM1010 turns GNSS module OFF, but keeps GSM module ON. The device is not making any new periodic GPS records, just monitoring the events with the last known coordinates and sends them to tracking server. As a result power consumption decreases allowing saving vehicle’s battery (below 2 mA).

FM1000ST exists normal sleep mode when “Movement” mode detected or “Ignition” switches on.

  • Deep sleep mode. While in deep sleep mode, FM1000ST sets both GNSS receiver and GSM/GPRS module to OFF state, thus making impossible to wake up the device remotely. Battery consumption drops below 2 mA.

FM1000ST exits deep sleep mode if at least one of following conditions is true:

    • “Movement” mode is detected
    • “Ignition” is turned on
    • USB cable is connected

Driving behaviour monitoring

Teltonika FM1000ST allows to monitor driving behaviour, making possible to use the device for insurance telematics. There are two configurable scenarios which designed for monitoring driving behaviour called Green Driving and Over Speeding.

Green Driving Scenario helps to inspect driver about harsh driving. Scenario continuously monitors: accelerating force, braking force and cornering angles. To prevent generating false events, harsh acceleration and harsh braking is monitored only when following conditions are fulfilled:

  • Ignition (Configured to be detected by Power Voltage, Ignition or Accelerometer) is turned on.
  • Vehicle speed is equal or higher than 10 km/h.

Harsh cornering is monitored only when following conditions are fulfilled:

  • Ignition (Configured to be detected by Power Voltage, Ignition or Accelerometer) is turned on.
  • Vehicle speed is equal or higher than 30km/h.

Over Speeding Scenario helps to prevent from exceeding fixed speed and inspects driver if needed.

Also Teltonika FM1000ST features jamming detection and excessive idling detection.

Local and remote management

Unfortunately Teltonika FM1000ST tracker can’t be controlled over GPRS, though it supports firmware updating via GPRS (FOTA). However, there is a wide list of SMS commands in a human-friendly format, on which device always replies back. In particular, Server and APN settings can be applied remotely with SMS. To decrease the amount of SMS required for configuration SMS in binary format can be also used – and the most advanced GPS tracking software platforms allow to utilise that.

Alternatively, you can configure FM1000ST from a PC using proprietary software (Teltonika Configurator) and standard USB-cable which is included into package.

LED indication

FM1000ST has two green LEDs located on the back panel, close to the SIM card slot. They are not very bright, and won’t blind the driver at night, but help to understand what’s the reason of the technical issue, when it occurs.

  • Status LED: indicates GSM/GPRS mode
  • Navigate LED: indicates GPS reception

Integración de Servidor

Servidor de la EUtracker.navixy.com (52.57.1.136)
Servidor de la UStracker.us.navixy.com (13.52.37.2)
Puerto de servidor47776
Integrado15/11/2015

Información general

PurposeVehículo
InstalaciónDIY (HUM)
Factor de forma especialOBDII Dongle

Alojamiento

Peso100 g (3.53 oz.)
Tamaño50.7x49.6x25 mm (2x1.95x0.98 in)

Localización GNSS

Antena interna (GNSS)
Antena externa (GNSS)No
GPS
GLONASS

Conectividad

Tipo de la red del celularGSM Quad Band
Generación de red celular2G

Interfaces

SalidasNo

Características de hardware

Capacidad de batería170 mAh
Batería integrada
El botón de pánicoNo

Hardware extras

Lectura del sensor del nivel de combustibleNo
Lectura del sensor de temperaturaNo

Características de rastreo

Modos de rastreoIntervalo, Continuo
Localización por Cell ID
Soportado
Consumo inteligente de batería
Soportado
ECO driving
Soportado

Monitoreo de eventos

Poca batería
Soportado
Cambio de entradaNo
Dispositivo on/off
Soportado

Automonitoreo

Nivel de señal
Soportado
Nivel de señal GNSS
Soportado
Satélites GNSS fijados
Soportado
Voltaje de alimentación externa
Soportado
Nivel de batería interna
Soportado

Leyendo CAN/OBDII

Tipo de lector CAN/OBDII
Soportado
Parámetros CAN/OBDIIFuel level, fuel consumption, engine RPM, throttle position, speed, engine load, coolant temperature, DTC error codes and other
Lectura de códigos DTC
Soportado

Administración remota

La conexión con servidor por SMS
Soportado
Configuración remota de dispositivoSí (por SMS), Sí
Soportado
Control remoto de las salidasSí, Sí (por SMS), Por GPRS (se requiere el firmware 00.06.XX)
Soportado
Actualización de firmware OTA

Certificacón

CE
FCC
