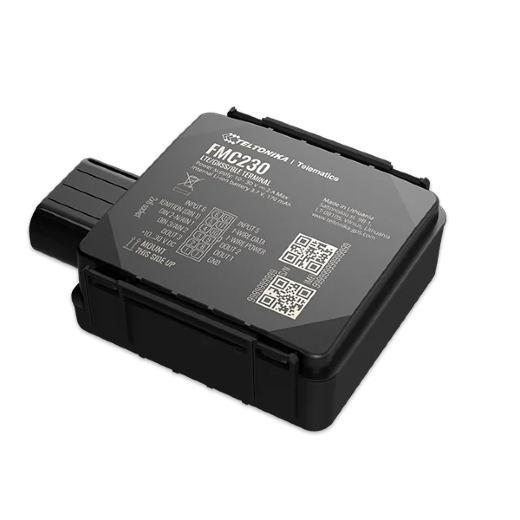

Teltonika FMC230

FMC230 is water and dust resistant tracker with 4G (LTE Cat 1) network coverage including 2G (GSM) fallback compatibility. It comes equipped with internal GNSS, LTE antennas, configurable digital/analog/negative and impulse inputs, three DOUT outputs, Bluetooth connectivity, and backup battery. FMC230 developed on the existing Teltonika platform, therefore it keeps all of the functionalities from

Mostrar más

FMC230 is water and dust resistant tracker with 4G (LTE Cat 1) network coverage including 2G (GSM) fallback compatibility. It comes equipped with internal GNSS, LTE antennas, configurable digital/analog/negative and impulse inputs, three DOUT outputs, Bluetooth connectivity, and backup battery.

FMC230 developed on the existing Teltonika platform, therefore it keeps all of the functionalities from FMC130 with an additional IP67 resistance to dust and water.

This tracker is dust tight and protected against the effects of a temporary immersion in water. It can be mounted inside and outside of a vehicle without worries that high pressured water, mud or dusty environment will impact its operation or performance quality. This is particularly relevant for the industries where harsh conditions exist, such as agriculture, construction and mining, and more.

For starters, FMC230 features negative input which allows you to save precious integration time while connecting accessories like vehicle doors sensor, alarm buttons, seatbelt detection, and other similar sensors or accessories.

Additionally, the device has an integrated possibility to enable Impulse Input for precise fuel flow meter data reading. Impulse based fuel usage monitoring is much more accurate than a different type of fuel metering sensors and it makes the FMC230 a perfect solution for high fuel usage machines like cranes, construction vehicles, mining machines, agriculture equipment.


Conexión del servidor

Servidor de la UEtracker.navixy.com (52.57.1.136)
Servidor de USAtracker.us.navixy.com (13.52.37.2)
Puerto de servidor47776
Auto registro

Información general

FinalidadVehículo
Tamaño70.5 x 67.0 x 25.6 mm (2.78x2.64x1.01 in)
ImpermeableIP67
Antena interna (GNSS)
Antena interna (Conexión)

Conectividad

Estado de roaming
Nivel de señal
Tipo de la red del celularQuad-band 850/900/1800/1900, CAT-1
Generación de red celularLTE CAT-1, 2G
ID del operador

Información de ubicación

Nivel de señal GNSS
LBS
Localización forzada por GNSS preferente a GPRS
Localización forzada de GNSS preferente a SMS
GPS
GLONASS
Galileo
Beidou
GPS asistido

Características

Control remoto de las salidas
Odómetro
Acelerómetro
Lectura del identificador del conductor
Capacidad de batería170 mAh

Interfaces

Entradas digitales4
Número de salidas3
Sensor analógico
Sensor de impulsos
Sensor de frecuencia
Interfaz 1-Wire
Tipo de lector CAN/OBDIIExterno
