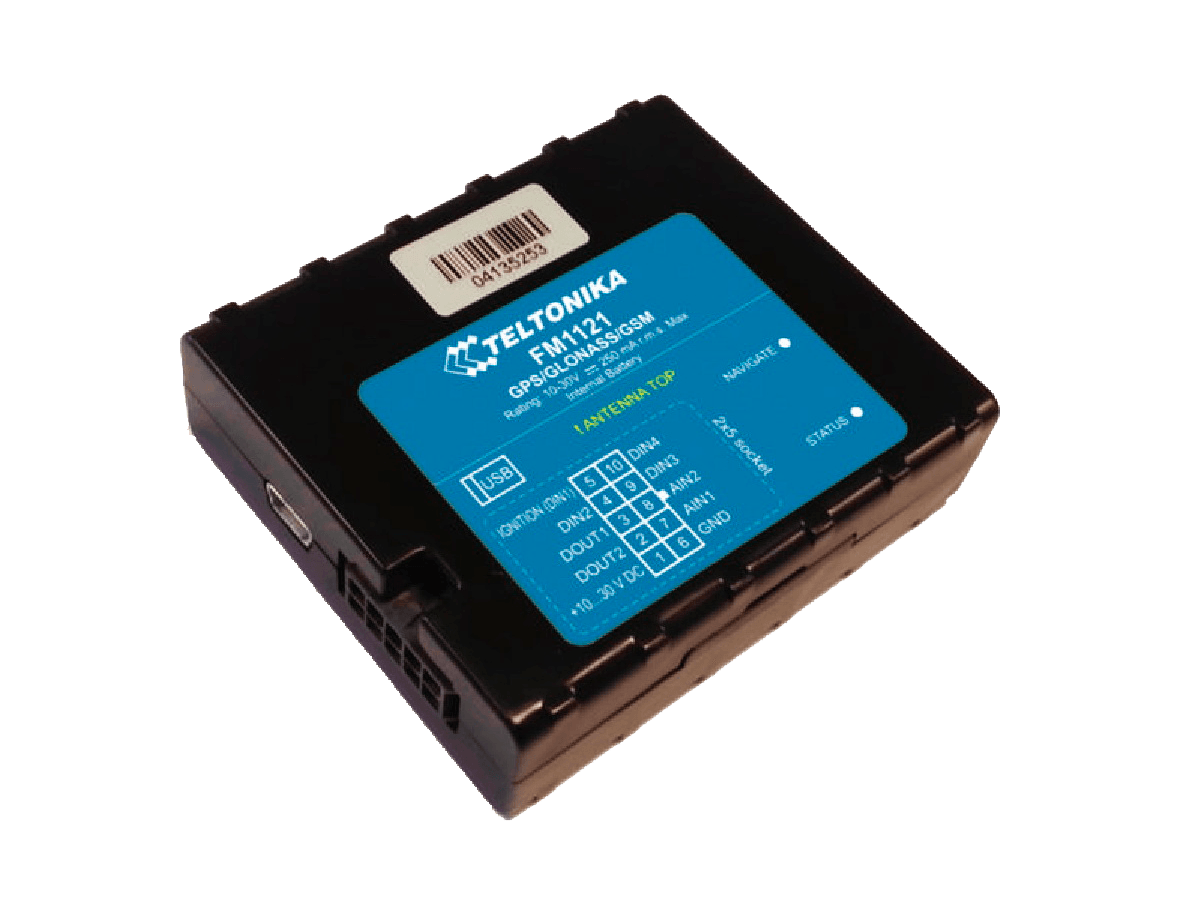

Teltonika FM1121 is marketed by the manufacturer as light real-time tracking terminal. It works with GPS and GLONASS systems and it is able to connect to GSM networks. It can be used for the work's optimization of fleet management also transport companies as well as for personal needs.
This GPS tracker has an internal GSM and GPS/GLONASS antennas and is able to catch not the strongest signals. Also, FM1121 has a smart power consumption system that can extend the life of the built-in battery in deep sleep mode.
It is operating in different roaming networks and due to a smart algorithm of GPRS connections help to save the traffic.
Package content depends on order code, and can be customized by customer needs.
The standard package contains:
- Input and output power supply cable with a 2×5 connection pins
- USB cable
- A card containing URL to download FM1121 device drivers and Configurator software
- Integrated 170mAh Li-ion rechargeable battery
Location and tracking
FM1121 model is embedded with GPS chip and also it has the support of GLONASS. It doesn’t support Assisted GPS (A-GPS) technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).
The tracking mode is flexible configured: by moving every 100m, and every 60 sec, and on turning on 30 degrees by default. When there is no movement (detected by “Ignition” status), tracker sends data every 180 seconds.
FM1121 has a quad-band GSM 2G module, so it can be operated all over the world.
FM1121 model features such interfaces as
- 1 Digital Input Reserved for Ignition Status Monitoring
- 3 Digital Inputs
- 2 Analog Input (10V or 30V range)
- 2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
FM1121 uses and voltage range 10-30V, which makes possible to install it both on cars and trucks. Device also features an optional built-in rechargeable backup battery. When fully charged it ensures about 1 hour of device operation (in normal conditions).
There is a virtual “Ignition” flag in FM1121 which is determined by either:
- External power voltage – when the power level falls below a certain configured level (by default 13V), the “Ignition” is considered to be OFF, otherwise – ON.
- Digital Input #1 – if there is positive signal on DIN #1 of the socket, the “Ignition” flag is ON.
- Acceleration sensor – when the built-in accelerometer detects movement, the “Ignition” flag is ON.
Teltonika FM1121 determines whether vehicle is on move or stopped by one of three methods (configurable by user):
|by Board Voltage||If board voltage exceeds certain level (configurable, 13V by default)||If board voltage is lower than a certain level|
|by Acceleration||Internal accelerometer detects movement||Internal accelerometer does not detect movement|
|by GNSS||GNSS is fixed and speed is above 5 km/h||GNSS is fixed and speed is below 5 km/h or GNSS is not fixed|
Two sleep modes
FM1121 is able to go to Sleep mode after configurable Sleep timeout. This timeout (defined period) starts counting when device is in STOP mode. After timeout is reached and all conditions for sleep mode are met, device goes to normal sleep or deep sleep mode:
- Normal sleep mode. While in normal sleep mode, FM1121 turns GNSS module OFF, but keeps GSM module ON. The device is not making any new periodic GPS records, just monitoring the events with the last known coordinates and sends them to tracking server. As a result power consumption decreases allowing saving vehicle’s battery (below 2 mA).
FM1121 exists normal sleep mode when “Movement” mode detected or “Ignition” switches on.
- Deep sleep mode. While in deep sleep mode, FM1121 sets both GNSS receiver and GSM/GPRS module to OFF state, thus making impossible to wake up the device remotely. Battery consumption drops below 2 mA.
FM1121 exits deep sleep mode if at least one of following conditions is true:
- “Movement” mode is detected
- “Ignition” is turned on
- USB cable is connected
Harsh driving behaviour
FM1121 features “Green Driving Scenario” that helps to inspect driver about harsh driving. Scenario continuously monitors: accelerating force, braking force and cornering angles. When these parameters exceed configured thresholds, Green Driving event is generated and sent to server
To prevent generating false events, harsh acceleration and harsh braking is monitored only when following conditions are fulfilled:
- “Ignition” flag (see above) is turned on
- Vehicle speed is equal or higher than 10 km/h
Harsh cornering is monitored only when following conditions are fulfilled:
- “Ignition” flag (see above) is turned on
- Vehicle speed is equal or higher than 30km/h
Local and remote management
Teltonika FM1121 tracker can’t be controlled over GPRS, though it supports firmware updating via GPRS (FOTA). However, there is a wide list of SMS commands in a ASCII format, on which device always replies back. In particular, Server address and port, APN settings can be applied remotely with SMS. To decrease the amount of SMS required for configuration SMS in binary format can be also used.
You can also configure FM1121 from a PC using proprietary software (Teltonika Configurator) and standard USB-cable which is included into package.
FM1121 has two status LEDs:
- Status LED: indicates GSM/GPRS mode
- Navigate LED: indicates GPS reception
Integración de Servidor
|Servidor de la EU||tracker.navixy.com (184.108.40.206)|
|Servidor de la US||tracker.us.navixy.com (220.127.116.11)|
|Puerto de servidor||47776|
|Peso||80 g (2.82 oz.)|
|Tamaño||65x56.6x18.9 mm (2.56x2.23x0.74 in)|
|Antena interna (GNSS)||Sí|
|Tipo de la red del celular||GSM Quad Band|
|Generación de red celular||2G|
|Número de salidas||2|
|Número de entradas (todos tipos)||3|
Características de hardware
|Capacidad de batería||170 mAh|
|Lectura del identificador del conductor||Sí|
Características de rastreo
|Modos de rastreo||Continuo|
|Localización por Cell ID||Sí|
|Consumo inteligente de batería||Sí|
Monitoreo de eventos
|Cambio de entrada||Sí|
|Corte de alimentación externa||Sí|
|Nivel de señal||Sí|
|Nivel de señal GNSS||Sí|
|Satélites GNSS fijados||Sí|
|Voltaje de alimentación externa||Sí|
|Nivel de batería interna||Sí|
|La conexión con servidor por SMS||Sí|
|Configuración remota de dispositivo||Sí (por SMS), Sí|
|Control remoto de las salidas||Sí (por SMS), Sí|
|Actualización de firmware OTA||Sí|
